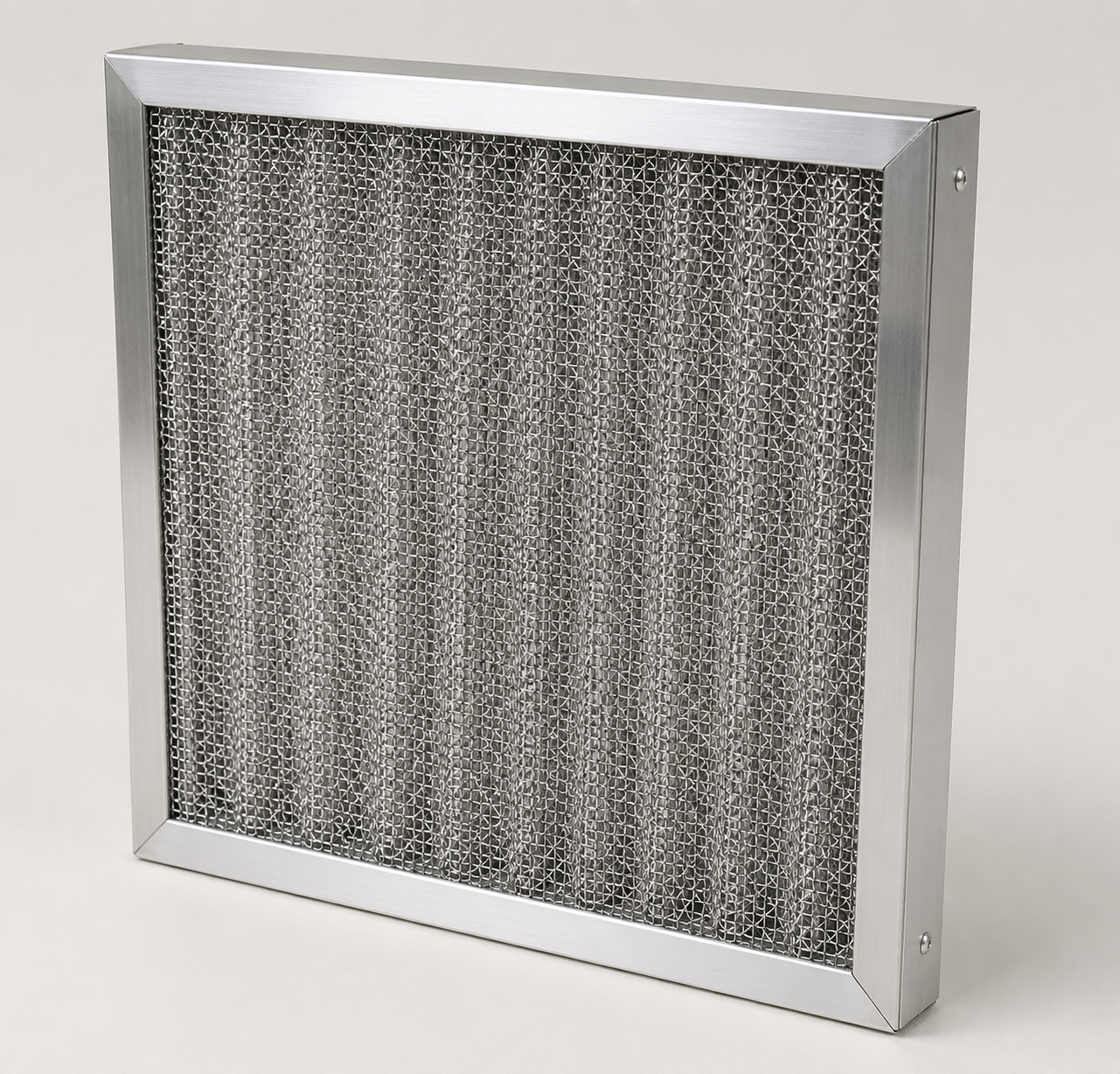

Metal mesh filter
Application
Used for central air-conditioning range hood and filtration, special ventilation of acid and alkali and high humidity resistance filtration. HVAC system, exhaust systems, Laminar, sampling, dispensing booths, fume hoods, biosafty cabinets etc.
| Actual size
HxWxD(mm) |
Air flow
(m3/h) |
Media area
Flow (m2) |
Velocity
(m/s) |
| 287*287*10 | 800 | 0.17 | 2.54 |
| 592*287*10 | 1600 | 0.34 | 2.54 |
| 592*592*10 | 3200 | 0.70 | 2.54 |
| 592*592*15 | 3200 | 1.05 | 2.54 |
| 287*287*21 | 800 | 0.41 | 2.54 |
| 592*287*21 | 1600 | 0.82 | 2.54 |
| 592*592*21 | 3200 | 1.75 | 2.54 |
| 592*490*46 | 2650 | 2.61 | 2.54 |
| 592*287*50 | 1600 | 1.87 | 2.54 |
| 592*592*50 | 3200 | 3.86 | 2.54 |
| Metal mesh filter:
Media: Aluminum wave / Stainless steel wave |
Product feature
◎ Washable
◎ Large air flow and low initial resistance
◎ 100% factory inspection
◎ Long lifespan
◎ Combined by media with different pleat height to reduce media gap which used for high efficiency
◎ Suitable for acid-based and high humidity-resistance environment.
