Penetration between filter and support frame ISO 14644-3 At the nominal air-flow with H14 filter at its final pressure drop the penetration is lower than the 0.01% admissible. As mentioned in ISPE Good Practice by SMEPAC Committee and independently tested. SAF ensures the particulate containment performance (CPT 1,795 μg/m3) for Pharmaceutical equipment during HEPA filter replacement.
| DESIGN
Technocratics housings can provide a filter change free of contamination. They are available as single modules or modular systems depending on the number of filtration stages required and air volume. |

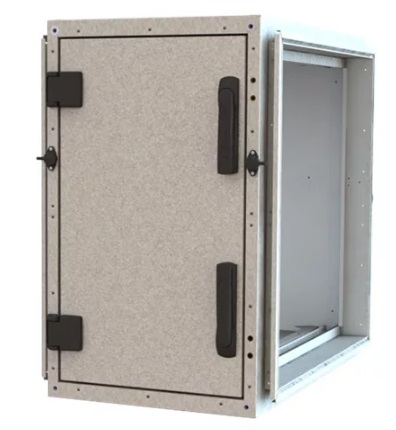

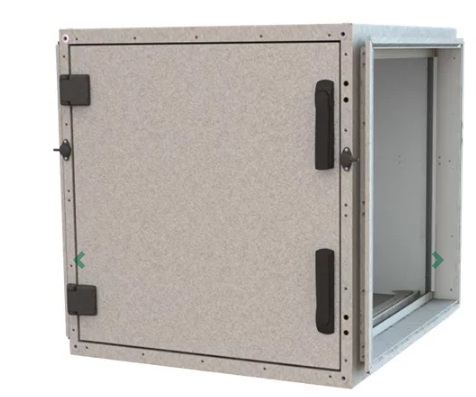

FILTER HOUSING
The Technocratics housing can be fitted with a wide range of particulate filter efficiencies as well as a range of molecular filters. By means of a quick clamping device the filter gasket is pressed against the gasket seat to do this, the lever must be turned 180 degrees. Failsafe mechanism ensures safety. |
| GASTIGHT CONSTRUCTION
The housings consist of a gastight welded robust construction of sheet metal and a safety door, which is secured by 4 star grip screws. Each housing has a separate safe change ring for each filter, a PVC bag is secured onto it by means of a rubber locking ring. |
TESTING
The Technocratics has been tested and qualified in our laboratory. Mechanical resistance and global and local leak efficiencies have been checked under positive and negative pressure of 6000 Pa. |
