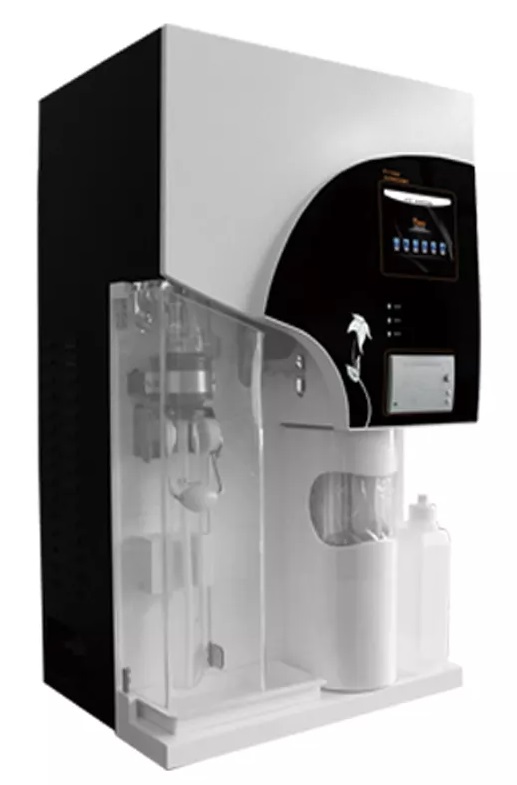

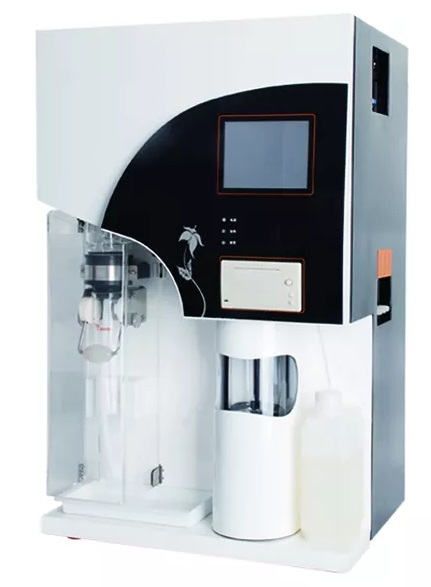

Kjeldahl Apparatus
Kjeldahl Apparatus - Image 2

Kjeldahl Apparatus

Kjeldhal apparatus Download Broucher

Measuring range 0.1mg ～200mg N
Analysis time 5～10min/sample
Reproducibility Average value relative error ±0.5%
Recovery ≧99.5%
Burette volume 1.0μL/step
Sample capacity solid≦5g/sample, liquid≦20mL/sample
Water consumption 1.5L/min
Data storage capacity 1800 groups
Power supply 220VAC±10%, 50Hz
Power 2Kw
Net weight 38Kg
Dimensions 455mm×391mm×730mm
Category:
1.High accuracy dozing and working: adopt 4 KNF pumps work for dozing, measurement liquid volume.
2. Complete compatible design: Using 300mL tubes(φ42mm), compatible with con-generic products perfectly
3. Easy Maintenance: Pre-install full functions of cleaning, include Digestion tube cleaning, Receiving cup cleaning, Alkali
pipeline cleaning, Boric acid pipeline cleaning, Acid washing, Steam bottle evacuation. Support customer make the routine
maintenance easily.Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl
nitrogen determination method. It’s equipped with the latest core control system, powerful automation and high-quality components,
can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and
real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy,
and multiple fluid level detection gives smooth test process.

Complete microcomputer control

Automatic completion of distillation, titration, calculation, printing, waste discharge and multiple protections, i.e.

failure self-detection, hints of condensed water shortage, displacement of safety door and digestion tube and so on.

Large LCD Touch Screen Panel

Large LCD touch screen gives visual operation and abundant information, enabling user to have a good command of it.

Complete compatible design

Compatible with congener products perfectly.

Performance advantage

Compatible with φ42 digestion tube
Titration while distillation, enhance the efficiency rapidly.
User friendly design, color touch screen, easy for operating

Performance advantage

Faster ARM system, faster operating rate
Digester model SH220F and SH420F is matching K1100F, with φ42 digestion tube

Characteristics

·Automatic distillation, titration, calculation, printing, drain and cleaning function, safety and saving-time.
·Visible titration cup design gives operator real-time control of the whole test process.
·Steam flow is controllable, satisfying different test requirements.
·Regent barrel enjoys fluid absence warning function, ensuring smooth test going.
·High-precision charging pump and titration system ensure test results accuracy.
·Large LCD touch screen gives visual operation and abundant information, enabling user to have a good commando it.
·USB or RS485 interface is optional for PC connection.
·Distilled liquid temperature is detected real time. Emergency stop against temp anomaly.
·Double distillation model meets different experiments, to retard the speed of acid-base reaction.
·Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.
·Printer is built in.

Technical specifications:

Measuring range 0.1mg ～200mg N
Analysis time 5～10min/sample
Reproducibility Average value relative error ±0.5%
Recovery ≧99.5%
Burette volume 1.0μL/step
Sample capacity solid≦5g/sample, liquid≦20mL/sample
Water consumption 1.5L/min
Data storage capacity 1800 groups
Power supply 220VAC±10%, 50Hz
Power 2Kw
Net weight 38Kg
Dimensions 455mm×391mm×730mm

Make: A&E Lab UK Co., Ltd
