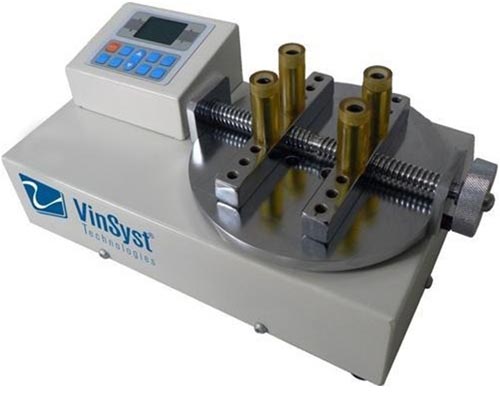

Bottle Cap Torque Tester
Universal Bottle Cap Torque Tester is designed for detecting and calibrating the torsion of opening and closing various PHARMACEUTICAL, water bottle and bottle beverages.
Capacity (N*M) | 20 |
Load resolution(N*M) | 0.1 |
Accuracy | 05.% FS |
Power | AC 220V |
Main Features:
- 10N.m bottle cap torque meter
- Opening torque meter
- Closing torque meter
- Peaking holding and auto releasing function, holding time can be set by user
- Judge the test results by initially input the max and min limits
- Memory 10 test data and calculate the average
- Three unit’s conversion: N.m, kgf.cm, lbf.in
- Automatic power off, power off time can be freely set (1-60mins)
- Inside printer: printing testing curve or 10 groups of tested data
- RS-232 output: connecting to computer to view force curve by testing software. Or transmit data to computer and save it into Excel to do analysis and print
- Capacity: 10N.m, resolution: 0.005N.m
- Accuracy: ±0.5%FS
- Power: 220 ± 10%V 100W
- Dimension: 365*210*135mm
- Net Weight: 9.0kgs
Make : VinSyst, India
