Technocratics (Private) Limited

HPLC Consumable

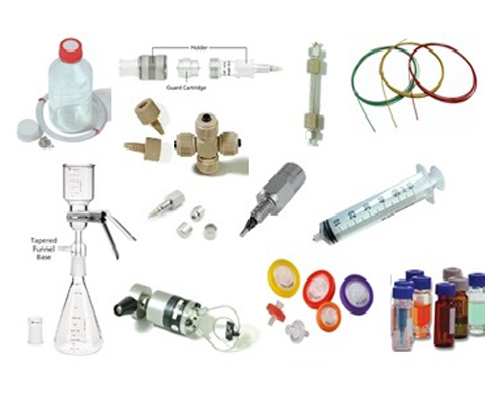

HPLC mobile phase filtration accessories

Mobile phase filtration accessories

Glass Membrane Filtration Assembly

Membrane filter:

OIL FREE DIAPHRAM VACCUME PUMP FOR STRILITY

Syringe filters



Syringes for Rheodyne



Glass Membrane Filtration Assembly

Glass base  (1 liter) are joined with a Standard Taper 40/35 ground joint, so liquids will only come in contact with borosilicate glass Vacuum hose connection is located above the filtration drip tip to prevent contamination in the vacuum line Filter area approximately 9.6 cm 2 capacity of funnel. (complete set)

Make: Normax

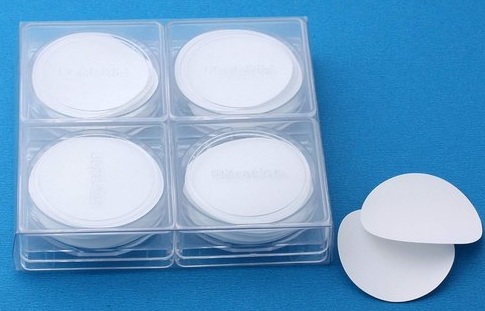

Membrane filter:

Material: cellulose, regenerated, hydrophilic, with support structure made of PP fleece.

Suitable for aqueous and organic media.

Thickness 155 μm.

Pore size: 0,45 µm

Make:: Merck

OIL FREE DIAPHRAM VACCUME PUMP FOR STRILITY



Pump Head:1

Speed of Evacuation:20 L/Min

Ultimate pressure:≥0.08Mpa

Vacuum:250 mbar

Pressure:≥30 Psi Positive or negative pressure

Working Temp:7-40℃

Motor Power:160W

Power consumption:220V/110V,50/60Hz

Make: High glass, Korea

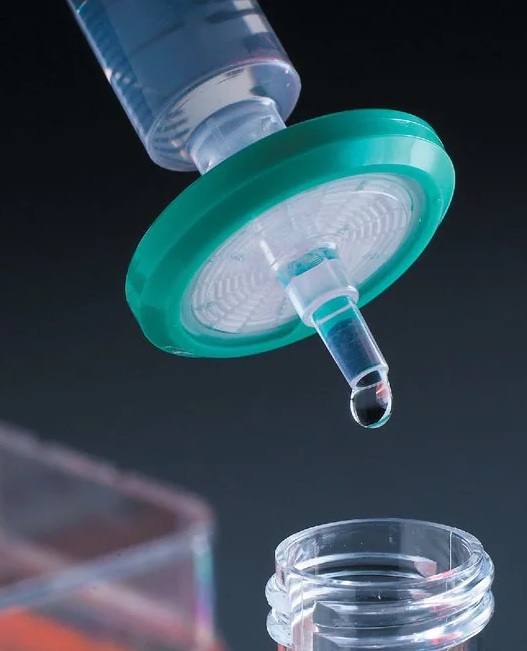

Syringe filters

Diameter: 25mm

Pore size: 0.45

Packing: 100 pices/pack

Make: Membrane solution

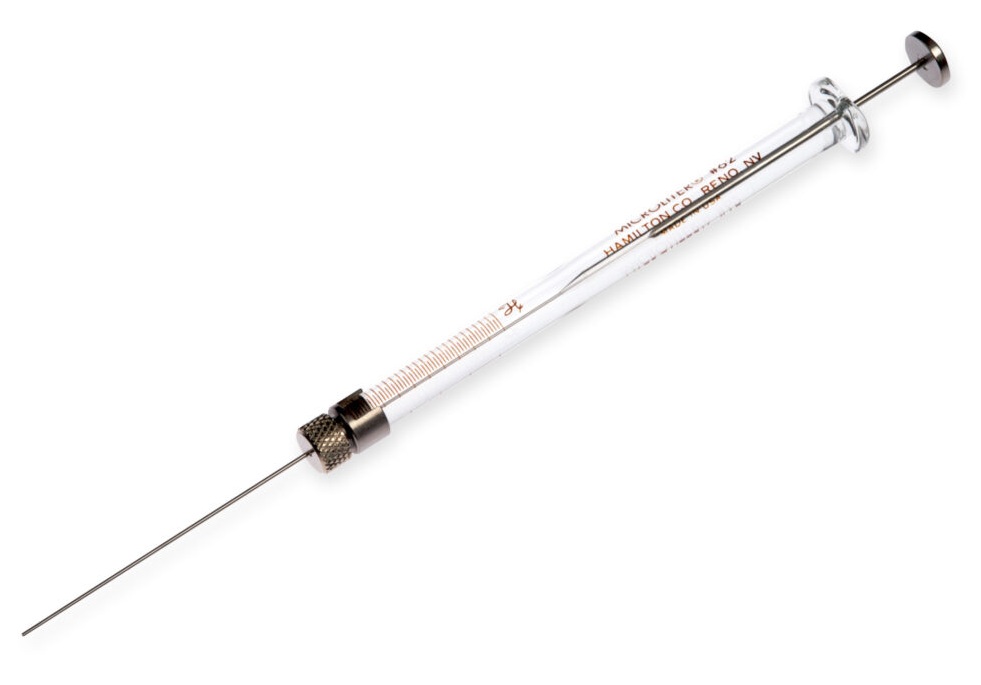

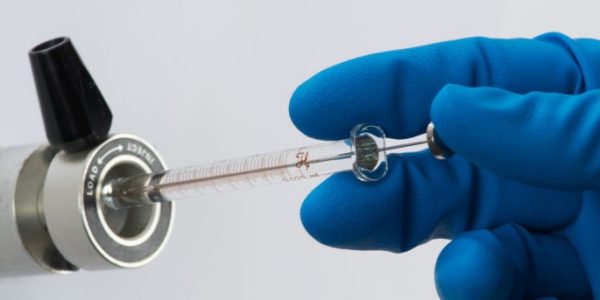

Syringes for Rheodyne

2.5 µL, Small Removable

Volume :                                                       2.5 µL (alls izes available)

Syringe Type :                                           Microliter

Termination:                                            Removable

Needle (RN):                                      Needle Small RN

Gauge:                                                         22s gauge

Point Style:                                                         3

Needle Length:                                      2 inch (51 mm)

Fluid Path:                                          SST, borosilicate glass

Autoclavable:                                                      Yes

Gas Sterilizable:                                                 Yes

Pressure:                                                 2000 psig (137.9 bar)

Maximum Temperature:                    115°C / 239°F

Minimum Temperature:                      10°C / 50°F

Barrel Inner Diameter:               0.014 inches (0.343 mm)

Barrel Outer Diameter:                 0.260 inches (6.60 mm)

Needle Inner Diameter:                 0.005 inches (0.13 mm)

Needle Outer Diameter:                 0.028 inches (0.711 mm)

Std Needle Dead Volume:                                1.13 µL

Sales Quantity :                                          1 syringe per pack
