Ceiling Modular HEPA filter  System for OT room

Supply and installation Modular suspended HEPA filter system for the compliance Pukhtoonkhawa HEALTH CARE COMMISSION,  Punjab HEALTH CARE COMMISSION, SINDH HEALTH CARE COMMISSION,  with recommended environmental, ventilation, lighting and power specifications of Health Building Note (HBN-13), Health Technical Memorandum 03-01 Specialized ventilation for healthcare premises Part A.

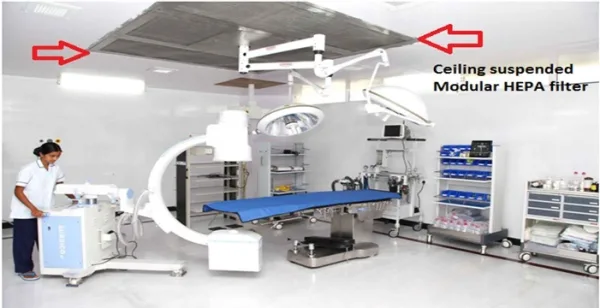

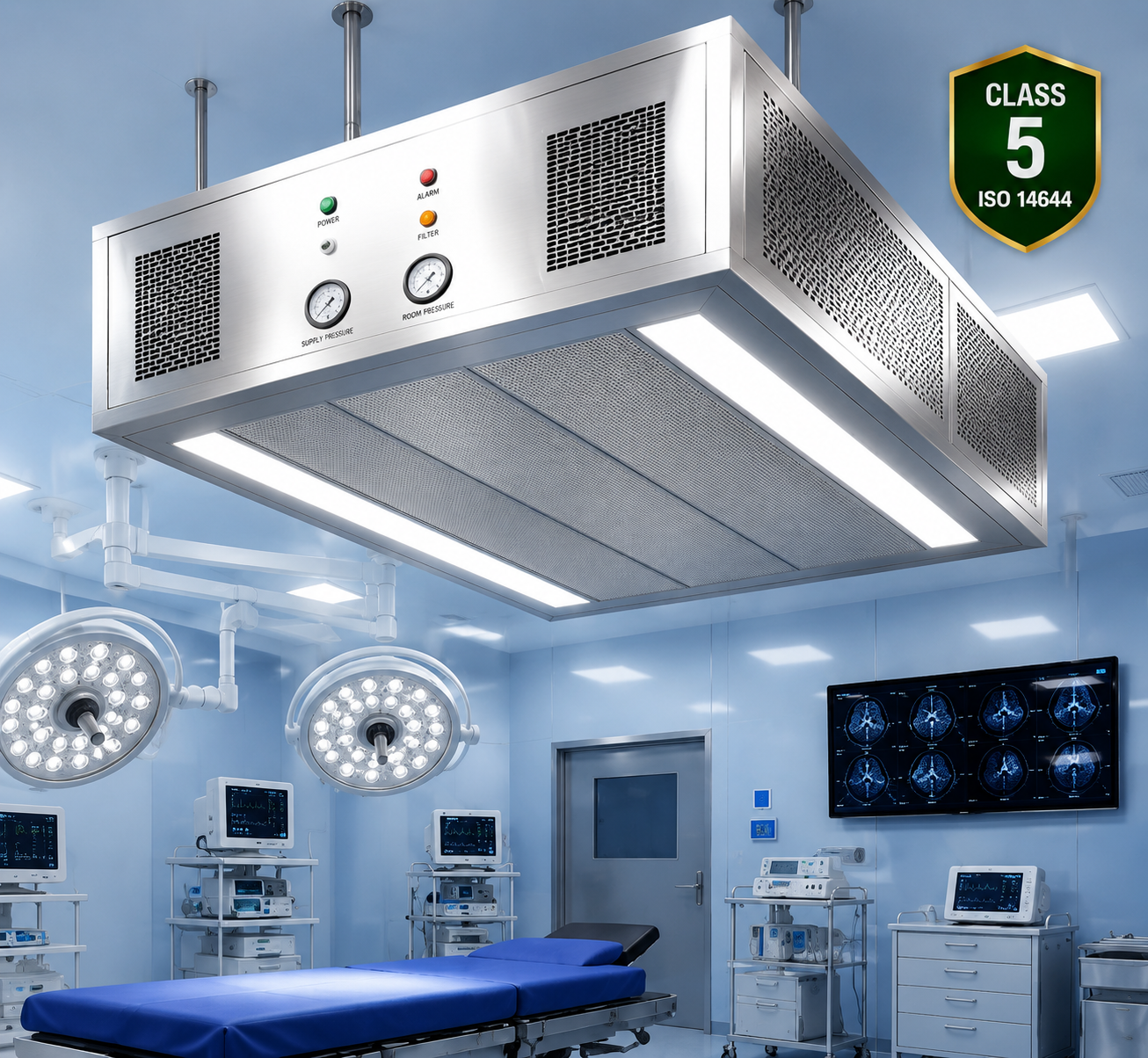

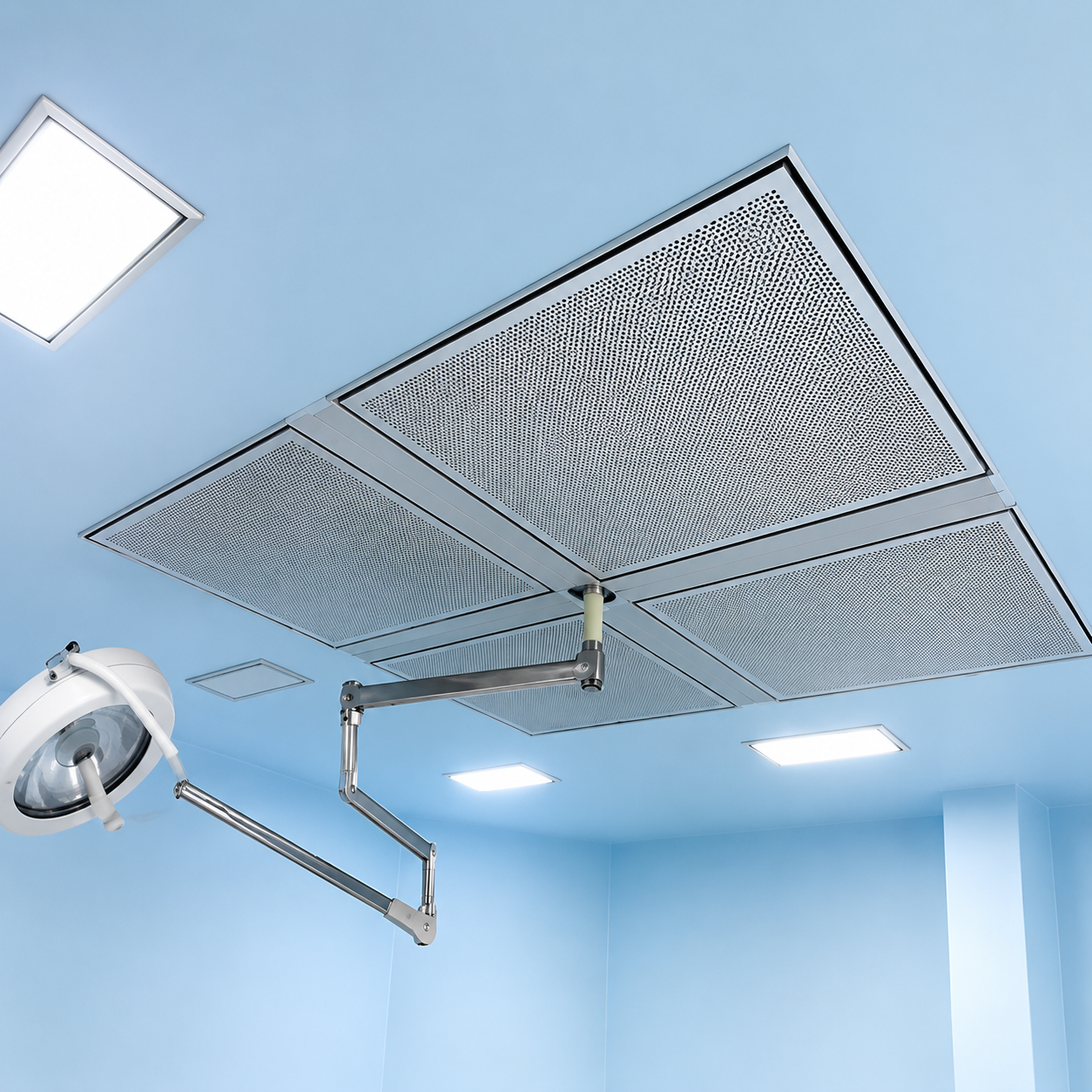

Ceiling suspended laminar air flow (CLAF) is used for operation theatre to meet Class 5 of BS EN  ISO 14644 , CLAF provides ultra clean sterile HEPA filtered air in a isolated area where the highly sensitive surgery are carried-out. Clean air CLAF laminar air flow available in complete stainless steel construction or GI construction with PU coated finish.

Differential pressure monitoring done through magnehelic gauges. Various sizes can be manufactured and supplied to suit the specific site conditions.

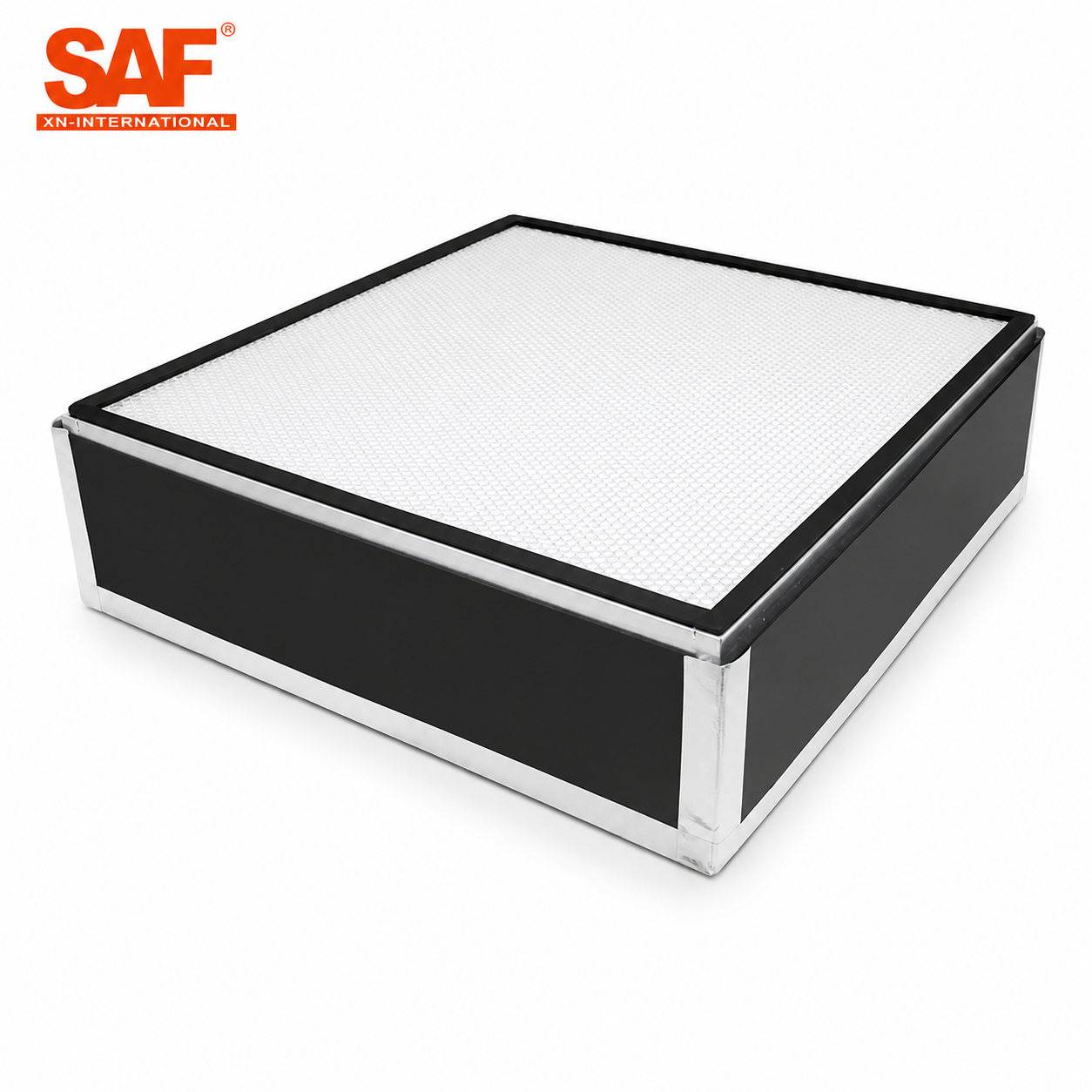

• HEPA Filter efficiency: 99.999%  (Filter media USA, Frame, Taiwan )
• Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
• Air Velocities : 0.45 ± 0.05 mps (90 ± 20 FPM)
• Air Flow : Horizontal / Vertical
• Noise Level : Less than 85 dB

• Washable synthetic pre-filter dust holding capacity: 90 %
• All function control panel: On/Off switches for light & blower
• Blower capable to maintain 0.45 m/s face velocity +/- 20% (imported)
• Power: 220V/50Hz

Make: , Hong Kong
