Technocratics (Private) Limited

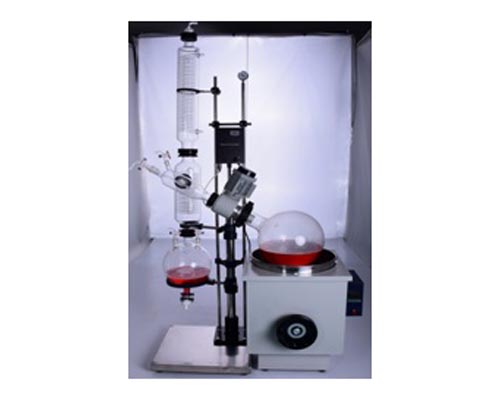

Rotary evaporator 10 Ltr

Rotary Evaporator, Pump and Chiller for Herbal Extract & Nutraceutical Extract

rotary evaporator 10ltr

Rotary Bottle 10L,diameter of flange opening: Φ50mm
Collecting bottle 10 L
Speed-regulation of main machine Digital display, vayiable frequency, stepless Speed-regulation
Rotary speed of main Machine 5  to 110r/min ,digital display of rotary speed



Rate of Evaporation(H2O) >3L/h,

Water Jet Aspirator Pump

Flow:80L/min,

Max vacuum:0.098Mpa,

sucking Speed:10L/min,

Number of sucktion

Nozzle:5 units,

Tank Capacity: 34L.

Rotary Evaporator, Pump and Chiller for Herbal Extract & Nutraceutical Extract

Rotary Evaporator

(10 Liter collecting Flask)

(Herbal & nutraceuitcal Extraction)

rotary evaporator 10ltr

Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems

Model RH 1005
Rotary Bottle 10 L,diameter of flange opening: Φ50 mm
Collecting bottle 10 L
Speed-regulation of main machine Digital display, vayiable frequency, stepless Speed-regulation
Rotary speed of main Machine 5  to 110r/min ,digital display of rotary speed
Rotaring motor       (W) phase AD induction motor,power: 40 W
Condensing tube Vertical type water refrigerating
Heating boiler stainless water bath (3KW twin)
Rate of Evaporation(H2O) >3L/h,
Temperature control Digital display, temperature control,0~99°C
Elevating function Electric elevation
Elevating stroke 0~150mm
Rated power supply 220V/50Hz
Power of power supply 3 KW

Make: GlassCo, China
