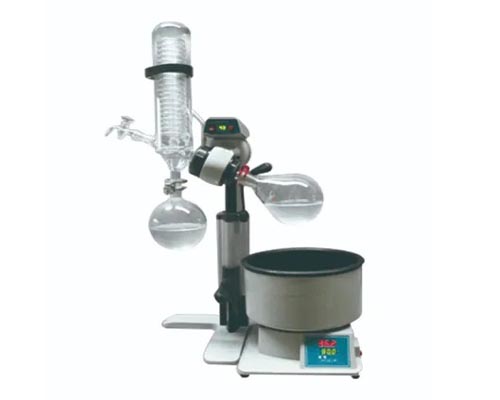

Rotary evaporator 1 Ltr

(Herbal & nutraceuitcal Extraction)

1.Double sealing rings with Teflon and Viton makes vacuum

up to-0.098Mpa.

2.Intelligent temperature control and digital temperature display.

3.High evaporating and recovery collecting rate.

4.Overloading protect function.

5.Expandable module design.

6.Stepless speed controller.

Rotary Bottle 1 L 24#(standard size）

Collecting Bottle 1 L 35#( ball mill mouth)

Condenser Verticalφ85*430mm,

Charging Valve 19#(standard size）

Rotating Speed 20-195 rpm

Vacuum -0.098Mpa

Temp. Range 0-99℃

Temp. Accuracy ±1℃

Stroke Height 100mm+150mm(sliding + manual）

Rotary Motor 40 W

Heating Power 1.5 KW

Water Evaporating Speed 20 ml/min

Vacuum Sealing

Double sealing rings made of

Teflon+ Viton materials

Shelf Material Aluminum alloy

Chamber Material Aluminum alloy +Teflonφ240*140mm

Power supply 220 V /50 Hz

External Size(W*D*H) 550*400*780(1040)mm

Package Size(W*D*H) 720*525*385 mm

Gross Weight 19Kg

Standard Accessory

1 L Rotary Bottle*1, 1 L Collecting

Bottle*1
