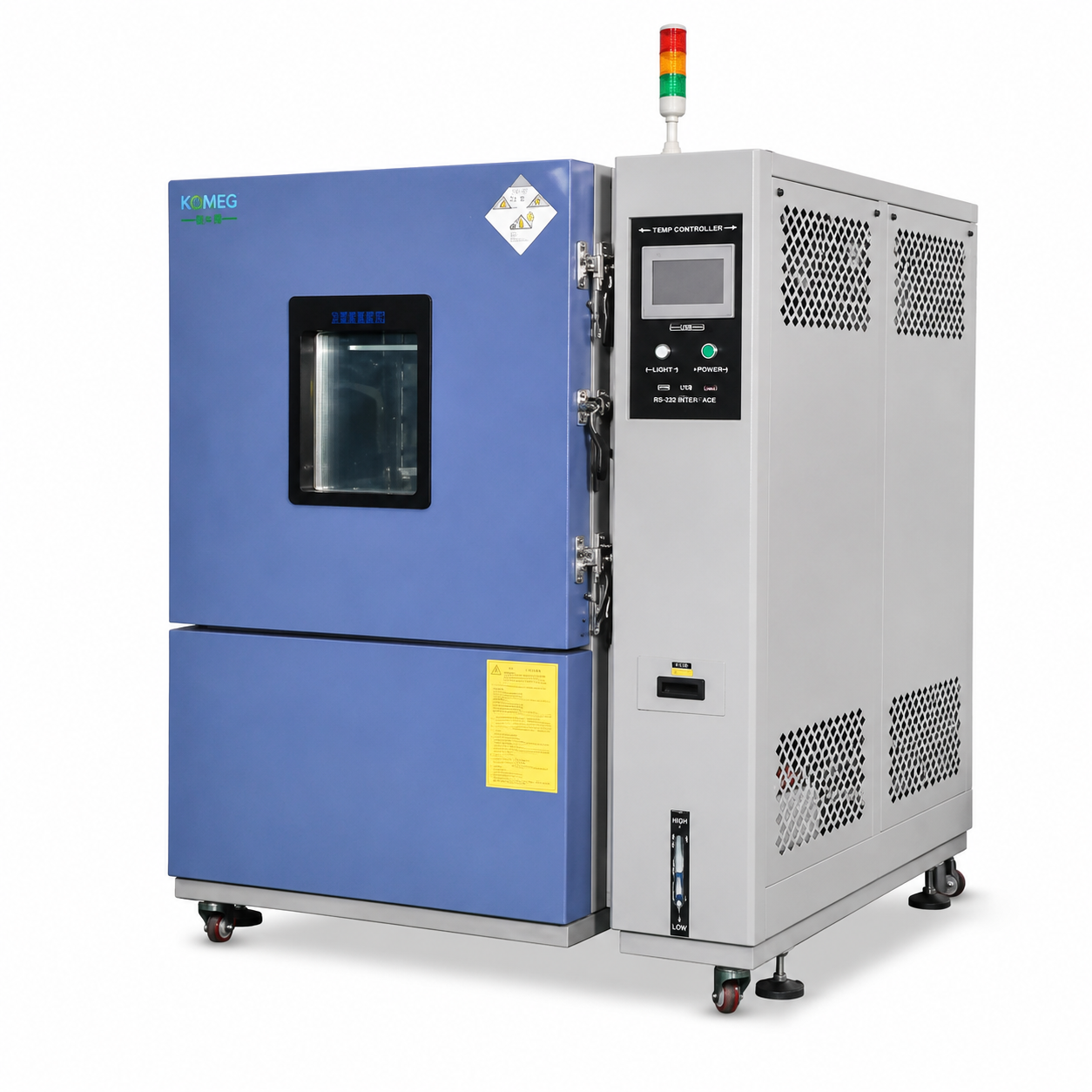

Download Cataloge Temp Test Only Chamber Proposal 1000L
Technical parameters:
| Model No | GTO-080 | GTO-150 | GTO-225 | GTO-408 | GTO-800 | GTO-1000 | |
| Working room(L) | 80 | 150 | 225 | 408 | 800 | 1000 | |
|
Inner chamber size(mm)W*H*D |
400*500*40 0 |
500*600*50 0 |
500*750*60 0 |
600*850*800 |
1000*1000*8 00 |
1000*1000*10 00 |
|
| Exterior chamber size(mm)W*H*D | 900*900*15
00 |
950*1500*1
050 |
950*1650*1
150 |
1050*1750*1
350 |
1450*1900*1
350 |
1450*1900*15
50 |
|
| Packaging
volume(CBM) |
2 | 3 | 3.5 | 4.5 | 5.5 | 6 | |
| G.W.(KGs) | 300 | 320 | 350 | 400 | 600 | 700 | |
| Heating & Coolin
g Rate |
1°C/min，3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min,20°C/min,25°C/min, 30°C/min linear average or nonlinear average | ||||||
| Performance | Temperat ure range | -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃, 250℃,300℃,400℃,500℃ | |||||
| Temp.fluc
tuation |
±0.5°C | ||||||
| Temp.Unif
ormity |
±1.5°C,No-load operation,After stead state 30 min. | ||||||
| Temp.res olution | 0.01°C | ||||||
| Heating rate | ≥3°C/min | ||||||
| Cooling rate | ≥1°C/min | ||||||
| Material | Inner chamber material |
SUS#304 stainless steel plate |
|||||
| Exterior | Stainless steel plate+ powder coated | ||||||
| chamber
material |
||
| Insulation Material | PU & Fiberglass wool | |
| System | Air circulation system |
Cooling fan |
| Fan | Sirocco fan | |
| Heating
System |
SUS#304 stainless steel high-speed heater | |
| Air flow | Forced Air Circulation(It enters at bottom and leaves at top) | |
| Refrigerati on system | Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser | |
| Refrigerati ng fluid | R23/ R404A USA Honeywell. | |
| Condensa
tion |
Air(Water)-cooling condenser | |
| Controllin
g system |
Digital electronic indicators+S.S.R.With PID automatic calculation capability | |
| Operation interface | UK AE LAB Expertise in Temperature & Humidity Controller,Chinese-English Shift. | |
| Controller | Program mable
capability |
Save 120 profiles with up to 1200 steps each |
| Setting range | Temperature：-100℃+300℃ | |
| Reading accuracy | Temperature：0.01℃ | |
| Input | PT100 or T Sensor | |
| Control | PID control | |
| Communi cation interface | Equipped with standard communication interface devices USB,RS-232 and
RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet |
|
| Print
function |
Japan Yokogawa Temperature Recorder(Optional accessories) | |
| Auxiliary | Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch) | |
| Accessories | Multi-layer vacuum glass observation window,Cable port(50mm),Controlling | |
| status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position
adjustable)，Guaze 5pcs,Operation manual 1 set. |
|
| Safety protection device | Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload
indicator lamp. |
| Power supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ220V;3Ψ380V,60/50Hz |
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. |
| The technical information will be subjected to change without notice | |
