Kjeldahl Apparatus Distillation Unit

Digital Kjeldahl Unit for Determine Nitrogen Content in Sample

Download Catalog

Technical data:

Measuring range 0.1mg ~200mg N
Recovery ≥99.5%
Sample capacity solid≤5g/sample, liquid≤20mL/sample
Distillation speed <5min/sample
Cooling water consumption 1.5L/min
Operating mode Manual/automatic mode
Display modes 5.1″ LCD screen
Power supply 220VAC±10%, 50Hz
Power 1.3KW
Dimensions 400*385*735mm
Category:

Model: K9VIII4

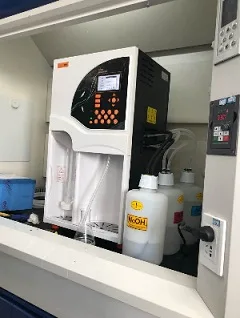

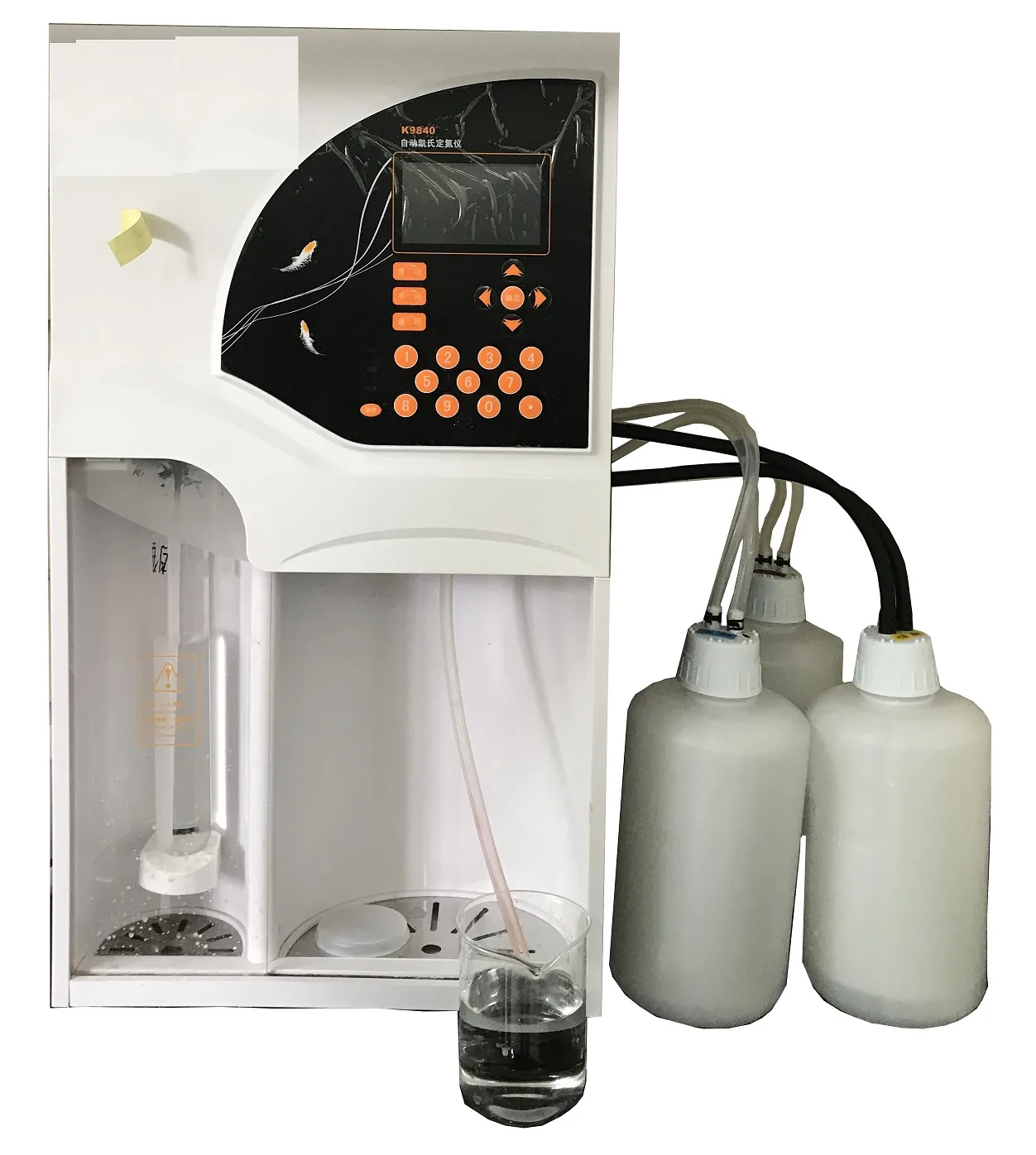

K9VIII4 auto distiller is used for determine nitrogen content of sample. All
intelligent software design makes the sample distillation complete within
minutes. The distillation and condensation automatic cleaning system makes
the measurement precision further improved.
It is widely used in pharmaceutical , food processing, feed production,
tobacco, livestock, soil fertility, environmental monitoring, medicine,
agriculture, scientific research, teaching, quality control and other fields for
the test of nitrogen or protein content.
It also can also be used for the test of ammonium, volatile fatty acid/alkali,
and so on.
Good Feature
 Display: 5.1″ LCD screen
 Manual/automatic mode fee changeover
 Automatic alkali liquid quantification and filling
 Automatic boric solution quantification and filling
 Automatic or manual filling mode is optional according to test need
 Distillation time can be set freely, and automatic alarming upon
completion
 Automatic cleaning of control system and distiller, ensuring high
measurement accuracy.
 Perfect safety protection system gives distiller and tubes measurement
and protection against over-temperature and over-pressure
 Intelligent design of nitrogen tube peripheral facilities include safety
designs and displacement hint
Intelligent cooling water control system achieves cooling water control
and test
