The impact height of QCJ-120 QCJ film Impact Tester is 120cm, the scale is 1cm, the drop weight mass is (1000 +/- 1) g, the impact head specification is φ 8mm, the impact depth is (2 +/- 0.1) mm, the diameter of the concave hole of the die base is 0019 15mm, and the radius of curvature is R2.5~ 3mm, which meets the standard GB/T1732-93.
Clean room Accessories, Lab Supplies

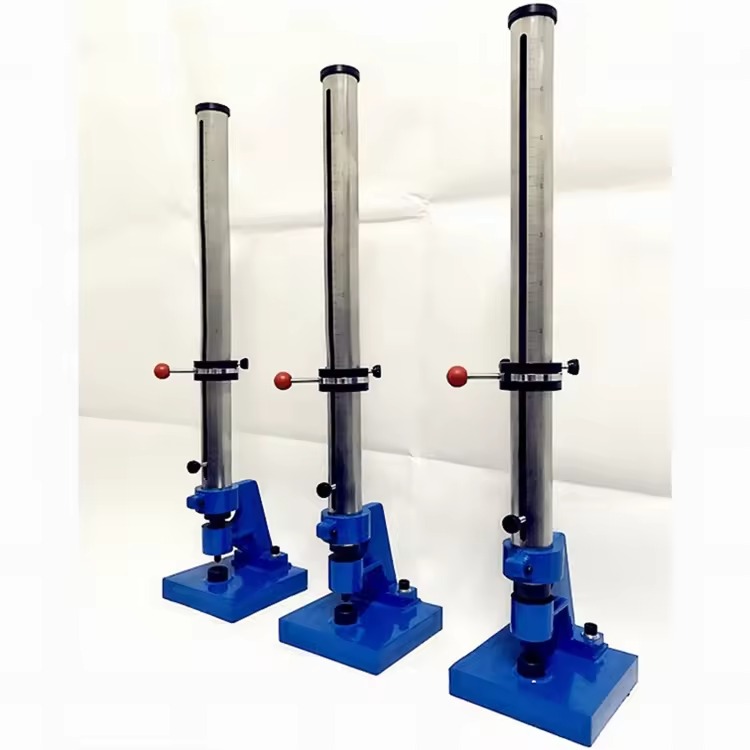

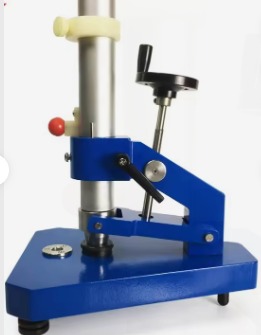

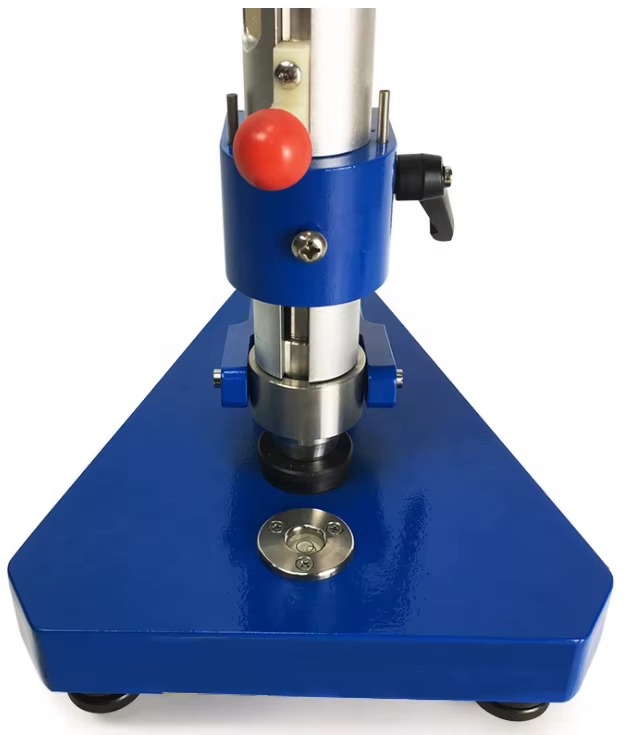

Impact Tester 120cm QCJ-120
Download Cataloge of Impact Tester QCJ
Technical Data
Impact Height |
120cm |
Scaling |
1cm |
Drop Weight mass |
(1000 +/- 1) g |
Punch Diameter |
φ 8mm |
impact depth |
2mm |
die base Aperture |
φ 15 mm |
radius of curvature |
R2.5~ 3mm |
