HVAC duct leakage Tester Control-over Cool Air Losses from HVAC System

Download Cataloge Duct Leakage TESTER (HVAC)

Description

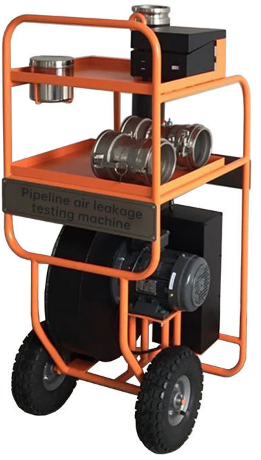

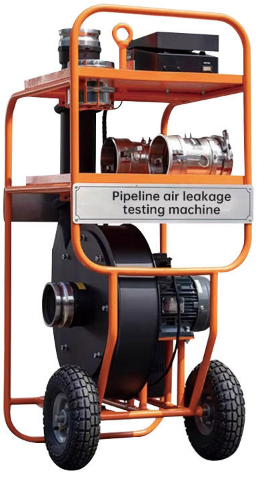

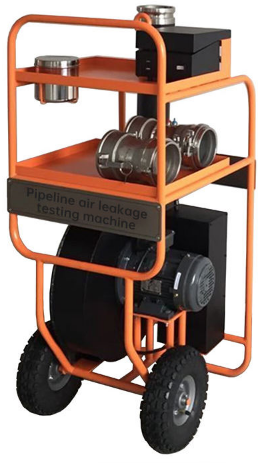

HVAC Duct Leakage Tester Machine

Duct Air Leakage Tester is mainly used for HVAC duct air leakage testing. Testing can be in Duct sections and the overall duct/pipeline after whole system installation to make the HVAC system effective and avoiding energy waste. Technocratics Team can investigate, whether the duct leakage from poor quality of duct sealant, duct joint, duct slip Touch screen with LCD color display and friendly Man-machine interface will make operation convenient and easier.

To comply with the International Energy Code, American National Standard, ANSI/SMACNA 016-2012 or Good Practice Guide: HVAC & Process Equipment Air Filters and DRAP now require duct leakage testing for both new construction and retrofits HVAC duct.

  • Duct air leakage testing under positive or negative flow.
  • Compliant with the following standards: EN1507:2006,EN12237:2002,Eurovent 2/2,DW/143,SMACNA Standard, GB50243 – 2002.
  • Wide air flow testing range, two measuring tools ensure the test accuracy.
  • Accreditation result will determine whether the duct sealing qualified.
  • Real time display the leakage, testing pressure, temperature and atmosphere.
  • 1000 groups data storage, review and delete.
  • 7 inches LCD touch screen for easy operation.
  • Simple construction and convenient installation.

Make: Kanomax, USA

Download Cataloge Duct Leakage TESTER (HVAC)

Category:

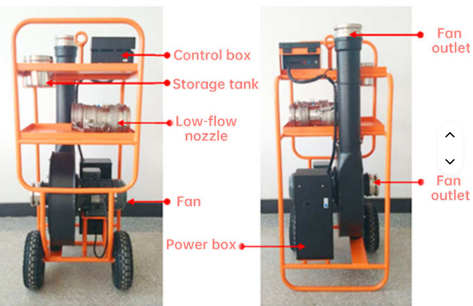

duct leakage tester consists of a calibrated fan for measuring an air flow rate and a pressure sensing device to measure the pressure created by the fan flow.
