BLUETOOTH TEMPERATURE AND HUMIDITY DATA LOGGER/RECORDER
for raw material store, refrigerator, coll storage area for validation or for thermal mapping

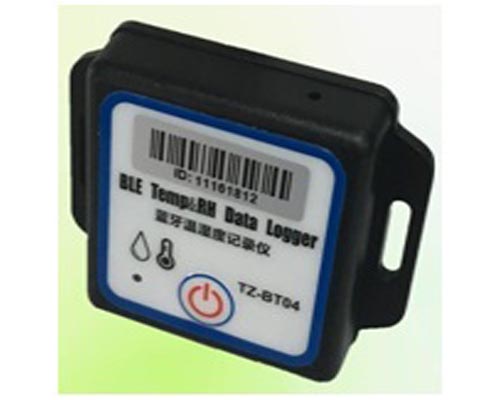

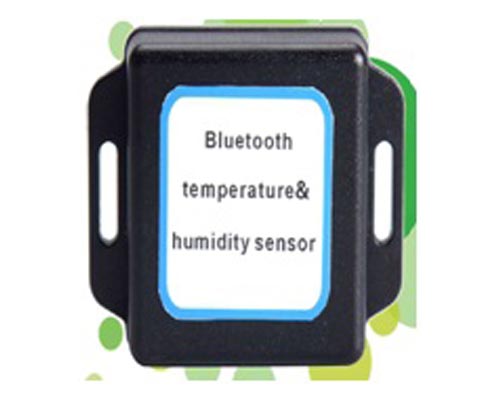

Bluetooth Low Energy temperature and humidity data logger TZ-BT04 with teh latest Bluetooth 4.0 technology and Nordic N51822 chipset. It can collect temperature and humidity of the surrounding environment and transfer to mobile devices, such as smart phones via Bluetooth 4.0. Such data can be recorded as history data. TZ-BT04 can store up to 150,000 pieces of the temperature and humidity data. Mobiel phone with Bluetooth 4.0 or above can download and install App configuration tool. It can store and monitor the temperature and humidity of the environment comprehensively. Its characteristics are small-sized, low-weighted, easily portable and highly accurate for wide use.
Main features:
- Real-time display of data
- High accuracy and stability
- Bluetooth 4.0
- Long distance wireless transfer
- Built-in highly sensitive temperature and humidity sensor
- It can store 15.000 pieces of temperature and humidity data
- Can be set normal storage temperature and humidity data interval and alarm storage temperature and humidity data interval
Project | Features |
Signal transmission frequency | 2.400 – 2.4835GHz |
Protocol standard | Bluetooth 4.0 |
Modulation mode | GFSK |
Send interval | 2S,adjustable |
Built in battery | 600mAh /3V |
Output power | -4dBm,adjustable |
Communication rate | 1Mbps |
Receiving sensitivity | 1Mbps@-93dbm |
Maximum transmission distance | 50 meters,adjustable |
Service life | 1 year (depends on the mode of operation) |
Net weight | 30 g |
Outline size | 50mm*50mm*20mm |
Temperature operating range | -20℃~60℃ |
Humidity detection range | 0~100%RH |
Temperature detection accuracy | ±0.3℃ |
Humidity detection accuracy
Make: Hong Kong |
±3%RH |
