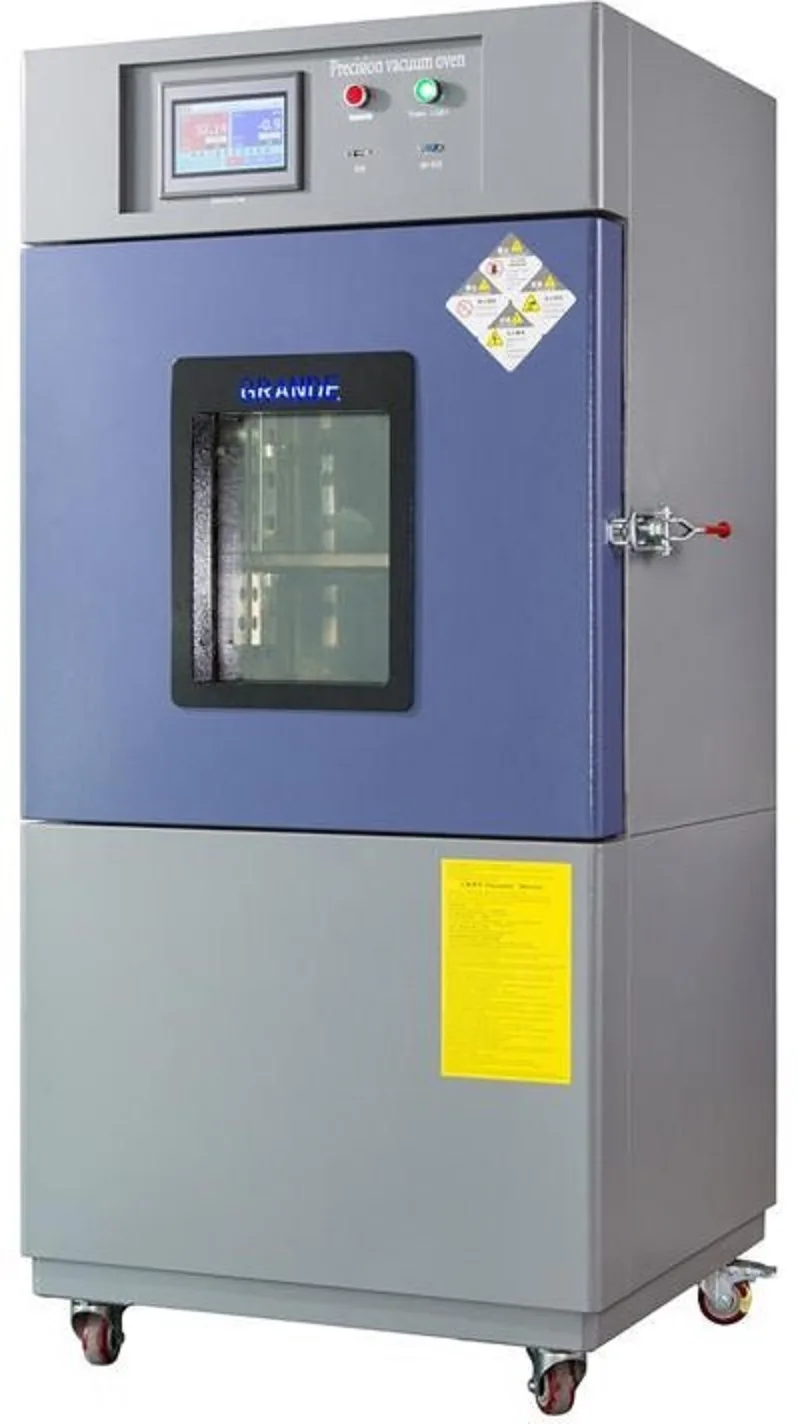

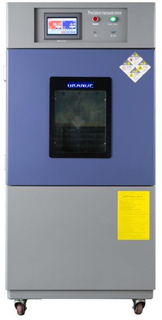

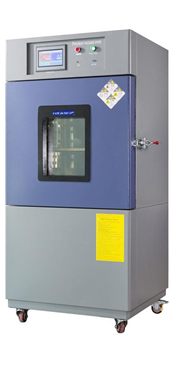

| 1.Description | Industrial Oven/Hot Air Drying Oven |
| 2.Model No | ae-075 |
| 3.Volume,Size and Weight | |
| 3.1.Inner volume | 75L |
| 3.2.Inner chamber
size(mm)W*H*D |
500*500*300mm |
| 3.3.Exterior chamber
size(mm)W*H*D |
900*1050*550mm(Appro.) |
| 3.4.Weight(KG) | 280KGs |
| 3.5.Power Supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz |
| 3.6.Power | 10kW |
| 3.7.Current | 17A |
3, Performance
| 1.Temperature Range | RT ~ 200℃ RT+10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,500℃,600℃,700
℃,800℃,900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,2500℃, 3000℃,or custom requirements |
| 2,Heating Rate | ≦3℃/Min or based on your custom requirements |
| 3,Cooling Rate | ≦1.2℃/Min or based on your custom requirements |
| 4,Control accuracy | 0.1℃ or based on your custom requirements |
| 5,Temperature Fluctuation | ≦0.5℃ or based on your custom requirements Temp Precision: ±1°C |
| 6,Temperature Error | ≦±1℃ or based on your custom requirements |
| 7,Temperature
Uniformity |
≦2℃ or based on your custom requirements |
| 8,Working Noise | ≤60dB(A) (Cycling temperature 25℃,testing in the less echo anechoic chamber,use A weighting,testing 8 points average,every testing point far
away from level noise source 1 meter,Height far away from floor 1 meter) |
| 9,Standards |
4,Main Chamber
| 1,Structure | |
| 2,Exterior chamber
Material |
SUS#201 Stainless steel plate+ powder coated+Foam Insulation |
| 3,Inner chamber Material | SUS#304 stainless steel |
| 3,Air Circulating Duct | 1,Use multi-wing centrifugal circulating fan,strengthen axis and hot
cold resistance rotary vane make of aluminum alloy,in order to forced convection. 2,FLOW THROW Air Supply Method；level diffuse vertical heat exchange arc circulation. |
| 3.Program automatic control high speed air cylinder drive high low temperature air supply valve conversion | |
| 4.Standard Configuration of Working Zone | Move caster:6 pcs
Fixed footed glass：4 pcs(height adjustable) Sample stand：2-layer stainless steel sample stand,hook 8 pcs,Load bearing(uniform distribution):25kg/layer(sample total load bearing not more than:60kg PC,Mobile APP,USB,RS-485 communication interface,misoperation hardware lock,communication cable 1 strip Cable port：φ50mm 1 pcs(option) |
| 5.Door | Single hinged door(face to box,left hinges,right handle) |
| 6,Control Panel | 1. Controller display
2. U disk interface(USB) 3. RS-485 Computer communication Interface 4.Misoperation hardware locking LOCK 5.Power switch 6.Emergency stop switch 7.Status and sound& light alarm device
|
| 7,Standard Configuration | Water pan,drain hole,plate heat exchanger,
Transport wind motor refrigeration system safety device (detail see configuration list) |
| 8,Circuit System | IO Panel,tool transformer,ballast,intermediate relay,time relay,solid-state
relay,A.C. contactor,thermal relay,fuse,owe reverse-phase relay, air switch |
| 9,Heater | 1. Chromel alloy strip heater
2. Heater control method：contactless recurrent pulses tune width,SSR (solid state relay) 3. Heater power：20KW |
| 10,Power Wire
and drain hole |
Power Wire at the top of chamber,drain hole at the back of chamber |
| 11,Clean Room
Class |
Class 100 or Class 1000 Heat-resistant HEPA filter |
5, Electric control system(ECS)
| 1,Controller | PID 7 Inch CO5600 |
| 2,Operation mode | Program mode |
| 3,Setting mode | English Menu PID Control |
|
4,Program volume |
T-touch 1.Program：Maximum 120 set
2.Cycle number：Maximum can infinite loop |
| 5,Setting range | Adjust by devices’ temperature working range |
| 6,Resolution | Temperature：0.1℃；Time：1min |
| 7,Input | T model thermocouple |
| 8,Communication function | PC,Mobile APP,USD,RS-485 interface,misoperation hardware locking LOCK,random complimentary computer communication software |
|
9,Control |
1. Anti reset wind-up PID
2. BTC balance tempering control +DCC intelligent cold quantity control +DEC intelligent electrical control |
| 10,Curve record function | Have battery protections’ RAM,can save devices’ setting,time of sampling
value and sample time；Maximum recording time is 180 days(when sampling period is 60S) |
| 11,Auxiliary function | 1. Fault alarm and cause,code manage prompt function
2. Outage protection function 3. Top and buttom limitation temperature protection function 4. Calendar timing function (autostart and autostop operation) 5.Self-diagnostic function |
| 12,Temperature
measurement |
USA OmegaT-shape thermocouple temperature sensor |
6,Protection
| 1,Test chamber | 1. Adjustable over temperature protection
2. Air conditioning channel limit over temperature protection 3. Fan motor overheat protection |
| 2,Other | 1. Emergency stop protection
2. Main Power phase sequence and default phase protection 3. Overload and short circuit protection 4. Cabient multi-open cause refrigeration system failure alarm protection 5. Air compressor air feed lack alarm protection |
7,Other Configuration
| 1,Power cable | Five wick(four wire three phase+protective earth wire)cable 1 strip(about 4 meter long) |
| 2,Power switch | NFB circuit breaker |
| 3,Transport | Chamber is integral type, overall transport |
| 4,Installation Size | 1. Floor Leveling,Excellent Ventilation
2. Around Chamber No Strong Vibration 3. Around Chamber No Strong Electromagnetic Field Affect 4. Around Chamber No Flammable,Explosive,Corrosive Substance And Dust 5. Around Chamber Have Appropriate Use And Maintenance Space,Shown Below： |
