High Performance Liquid Chromatography (HPLC)

[HPLC] SHISEIDO NANOSPAC (Pump, Detector, interface, software):

HPLC  Shiseido Nanoscape Pump:

·         Tandem-style double-plunger reciprocating pump

·         Flow range: 0.001~9.999ml/min

·         Increment/step: 0.001ml

·         Flow precision≤0.1%RSD

·         Max work pressure: 6000MPa

·         Voltage: 110V

·         Pressure fluctuation: under pressure range, when 1mL/min, <10mV

·         Compressible compensation: According to mobile phase auto adjustment or user choice

·         Material: SS for non-corrosive pump head

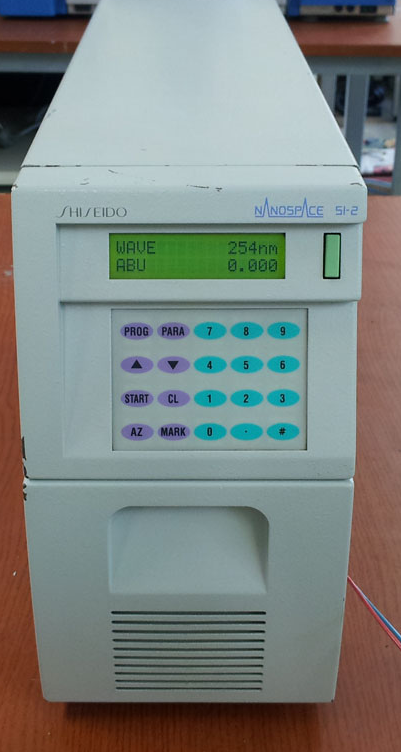

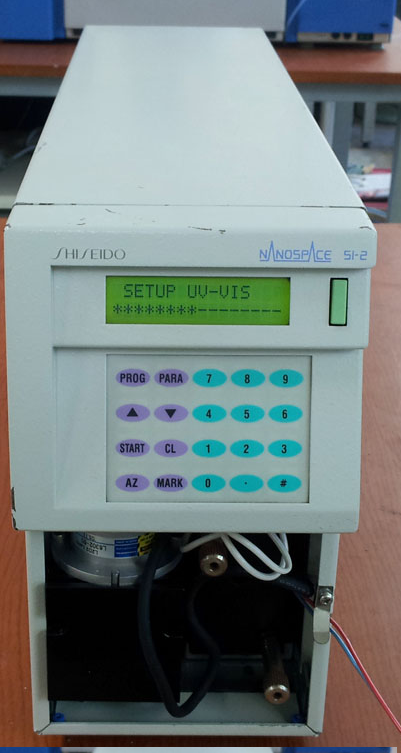

 [HPLC] SHISEIDO NANOSPACE UV/Vis detector:

• Wavelength range: 190~800nm
• Wavelength precision: ±1nm
• Wavelength repeatability: 0.1nm

·              Voltage: 110V

• Dynamic baseline noise: ≤1*10^-5AU(wavelength 254nm, flow velocity 1ml/min, pure methanol)
• Dynamic baseline drift: ≤2*10^-4 AU(wavelength 254nm, flow velocity 1ml/min, pure methanol)
• Detection limit: ≤4*10^-9g/ml(wavelength 254nm, flow velocity 1ml/min, pure methanol, sample: naphthalene)
• Spectrum bandwidth: 8nm
• Flow cell volume: 8μl
• Optical distance: 10mm

Novachrom Software

·         Simple, Acquisition base.

·         Suporta Windows XP.

Make; SHISEIDO, Japan

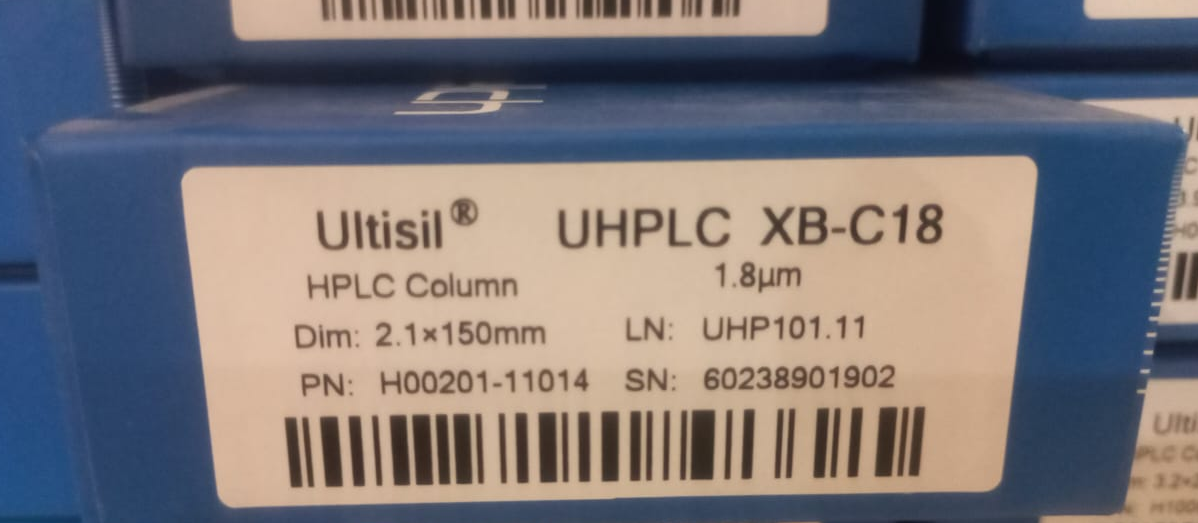

Colum

Column: C18

HPLC column: 1.8 um

Dim: 2.1 x 150mm

Make: Welch
