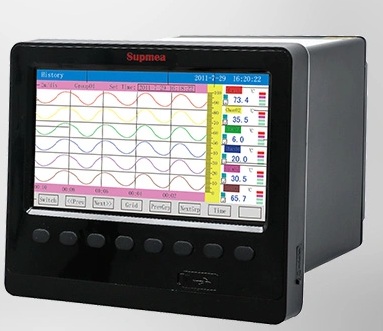

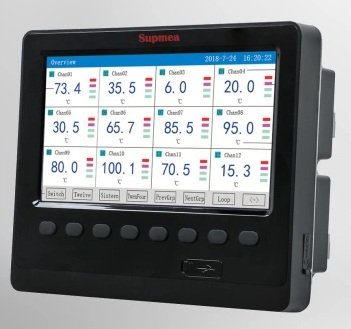

PAPERLESS RECODER (12 channel)
Power supply:100-240VAC; 24VDC
Display: 7.0 inch , 320*240 TFT color LCD
Thermocouple: K, S, E, J, T, B, N, R, WRe526, WRe325
RTD: PT100, Cu50,CU100
VDC: 0-5VDC, 1-5VDC, 0-10VDC
ADC:4-20mA, 0-10mA
mV:0-20mV, 0-60mV, 0-100mV, 0-500mV
Relay alarm output
4-20mA Retransmission output
RS485Communication port,
Ethernet MODBUS-TCP/IP port
RS232 Printing port
TF card port for data transfer
USB Port for data transfer
“Rec-Intv”=Record interval time: 1s, 2s, 3s, 4s….3600second, set flexibly
Screensaver time setting for LCD background light auto off when no any operation in order to decrease
the power consumption.
The setting parameters and history data can be kept by FLASH MEMORY, memorized forever if power off. Hardware clock built in for still accuracy running.
Environmental temperature:0-50°C
Environmental humidity:0-85%RH
Make: Hong Kong
