| Specifications | ||
| Measuring method | Conductivity, Resistivity, TDS, Salinity, Temperature, Conductivity Ash | |
| Measuring range | Conductivity | 0.000μS/cm～1000mS/cm |
| Resistivity | 0.00～100.0MΩ.cm | |
| TDS | 0.00 mg/L～1000 g/L | |
| Salinity | 0.00～80.00psu | |
| Conductivity Ash | 0.000～2022% | |
| Temperature | MTC: -5.0 to 135.0ºC ATC: -5.0 to 130.0ºC | |
| Resolution | Conductivity | Auto changing measurement range |
| 0.000μS/cm～1.999μS/cm | ||
| 2.00μS/cm～19.99μS/cm | ||
| 20.00μS/cm～199.9μS/cm | ||
| 200μS/cm～1999μS/cm | ||
| 20.0 mS/cm～199.9 mS/cm | ||
| 200 mS/cm～1000 mS/cm | ||
| Resistivity | Auto changing measurement range, the same value as conductivity 0.00～1.0 | |
| TDS | Auto changing measurement range, the same value as conductivity 0.01～1 | |
| Salinity | Auto changing measurement range, the same value as conductivity 0.00～1.0 | |
| Conductivity Ash | 0.001～1 | |
| Temperature | 0.1℃ | |
| Accuracy | Conductivity | ±0.5% of reading |
| Resistivity | ±0.5% of reading | |
| TDS | ±0.5% of reading | |
| Salinity | ±0.5% of reading | |
| Conductivity Ash | ±0.5% of reading | |
| Temperature | ±0.1℃ | |
| Measure | Reference temperature settings | 20ºC or 25ºC |
| Temperature compensation mode |
Linear, Non-linear, Turnoff, Pure water | |
| Calibration | 1 point, built-in 10 groups standard resolution, 1 point user defined | |
| Database | 2000 groups data | |
| Interface | RS232, USB, InsMark I Printer（Optional） | |
| Display | 5 inches touch screen, color LCD,Resolution 800×480 | |
| Electrode with ATC probe | Mini-DIN(Built-in NTC, 30k Ω) | |
| Others | GLP mode | |
| Ordering information | ||
| Order number | 85001228 | |
| Configuration | IS228, Electrode holder, Insmark tetracyclik electrode YE301,protective cove,Conductivity buffer(50ml*3), Specific power supply on request(seeP15) |
|
| N.W./G.W. | 0.7kg / 2.2kg | |
| Dimension(L*W*H) | 24cm*18cm*8cm | |
| With packing dimension | 38cm*30cm*10cm | |
| Ordering information | ||
| Order number | 85051228 | |
| Configuration(Meter only) | IS228, Electrode holder,protective cover,Conductivity buffer(50ml*3),Specific power supply onrequest (seeP15) |
|
| N.W./G.W. | 0.7kg / 2.0kg | |
| Dimension(L*W*H) | 24cm*18cm*8cm | |
| With packing dimension | 38cm*30cm*10cm | |
Lab Supplies

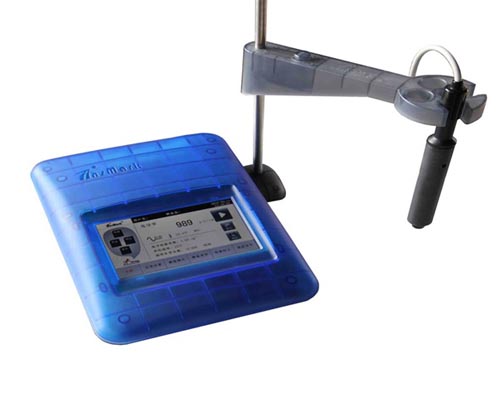

Conductivity meter bench top
Conductivity meter bench top
Measuring method: Conductivity, Resistivity, TDS, Salinity, Temperature, Conductivity Ash
Conductivity: 0.000μS/cm～1000mS/cm
Resistivity: 0.00～100.0MΩ.cm
TDS: 0.00 mg/L～1000 g/L
Salinity: 0.00～80.00psu
Conductivity Ash:0.000～2022%
