Technocratics (Private) Limited

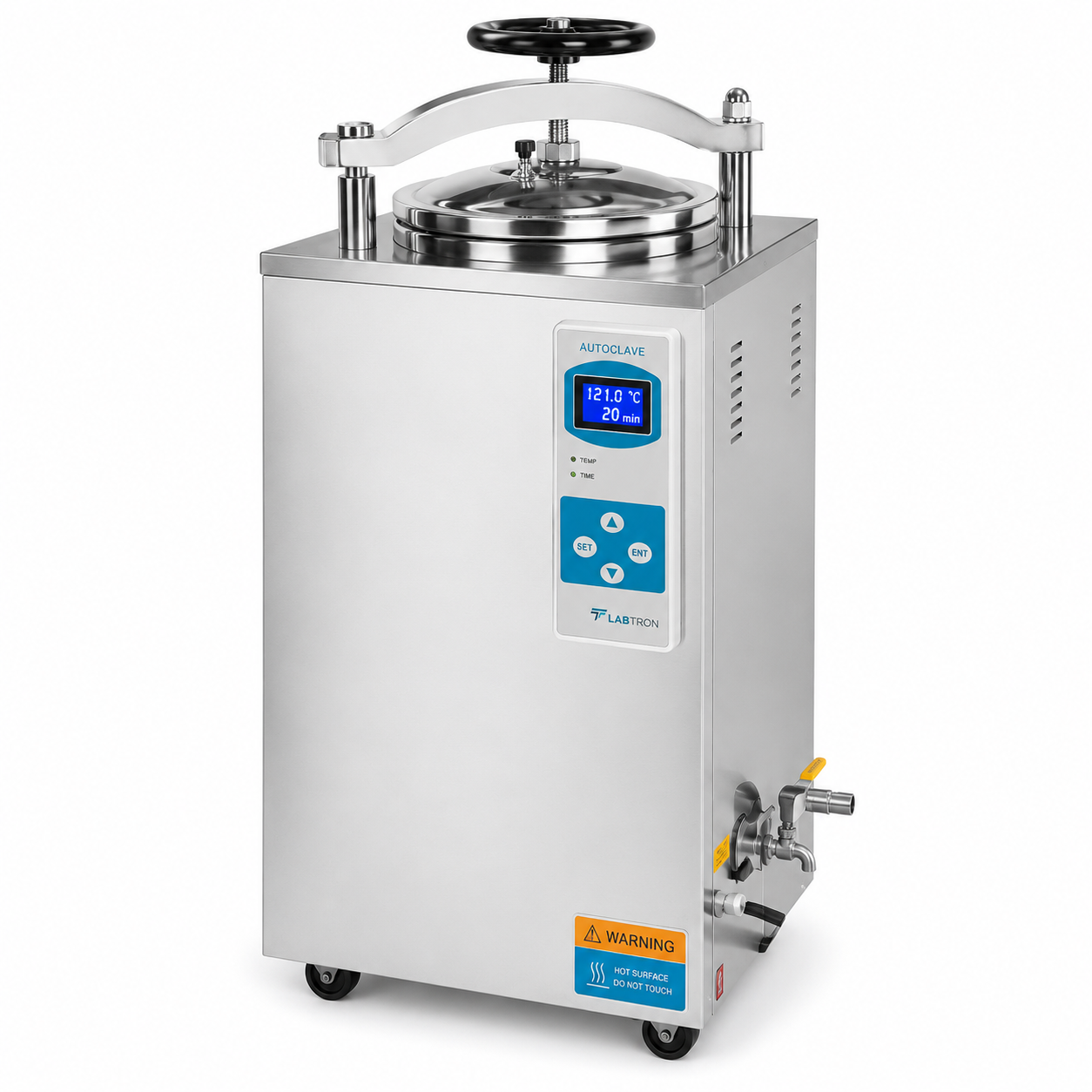

Autocalve 100 L

Autoclave/ steam sterilizer vertical

autoclave 100ltr

Model HVS-100D(automatic)
Valid volume 100L(φ440×650)mm
working pressure 0.22MPa
Working temperature 134ºC
Max working pressure 0.23 Mpa
Heat average ≤±1ºC
Timer 0~99min or 0~99hour
Adjustment of temperature 105~134ºC
Power 4.5kW/AC220V 50Hz
Overall dimension 590×590×1080(mm)
Transport dimension 680×650×1220(mm)
N/G.W. 85/115Kg



Category:

It is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temperature indicator, an alarm bell for finished sterilization and instrument to automatically cut off the power of the heater. It has the advantages of effective sterilization, convenient operation, safe, less electro city consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabric, glassed, culture media etc.



Main features:

1: Fully stainless high-alloy steel structure.

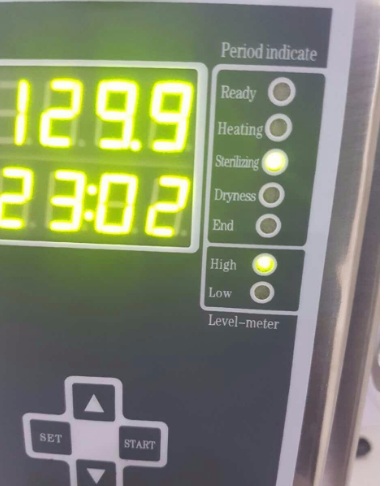

2: Digital display of working status, touch of key.

3: Manual or semi-automatic control.

4: Auto discharge the cool air, and steam discharging automatically after sterilization.

5: Automatically shut off with beep reminding after sterilization.

6: The accident protection system.

7: Automatic off of heating elements at reducing of a water level.

8: Blocking top cover at working.

9: Blockage of starting at opening.

10: Heater protection sensor.

11:Pressure and water level control.

12:With two stainless steel sterilizing baskets.

13:Easy to operate, safe and reliable.
