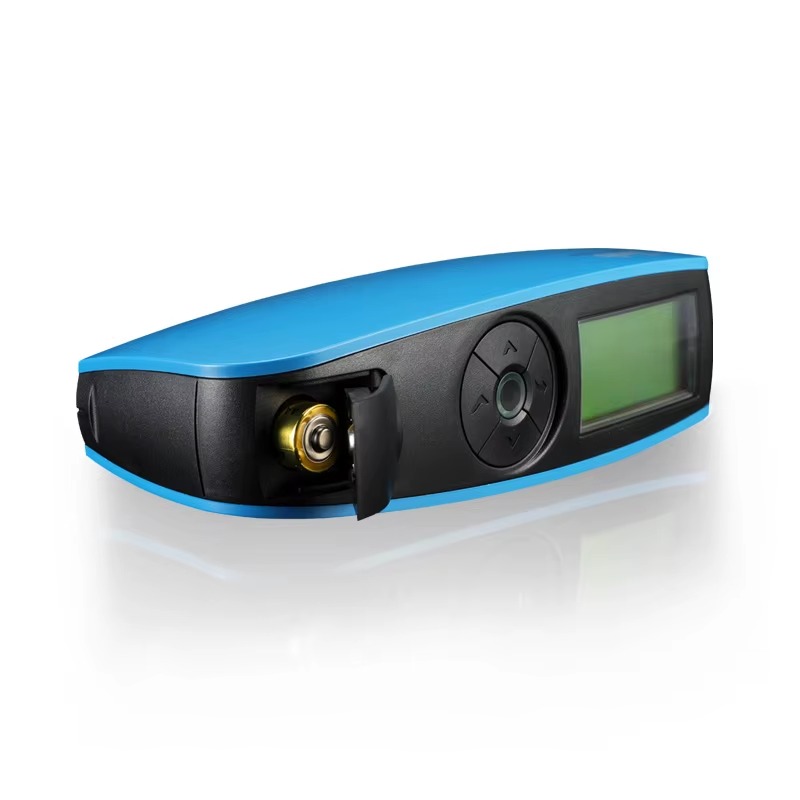

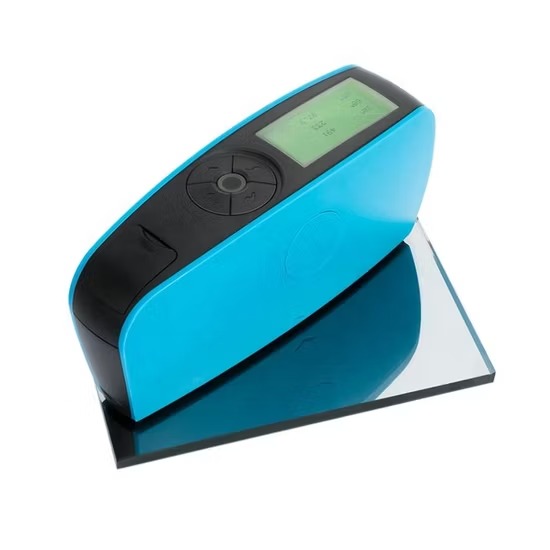

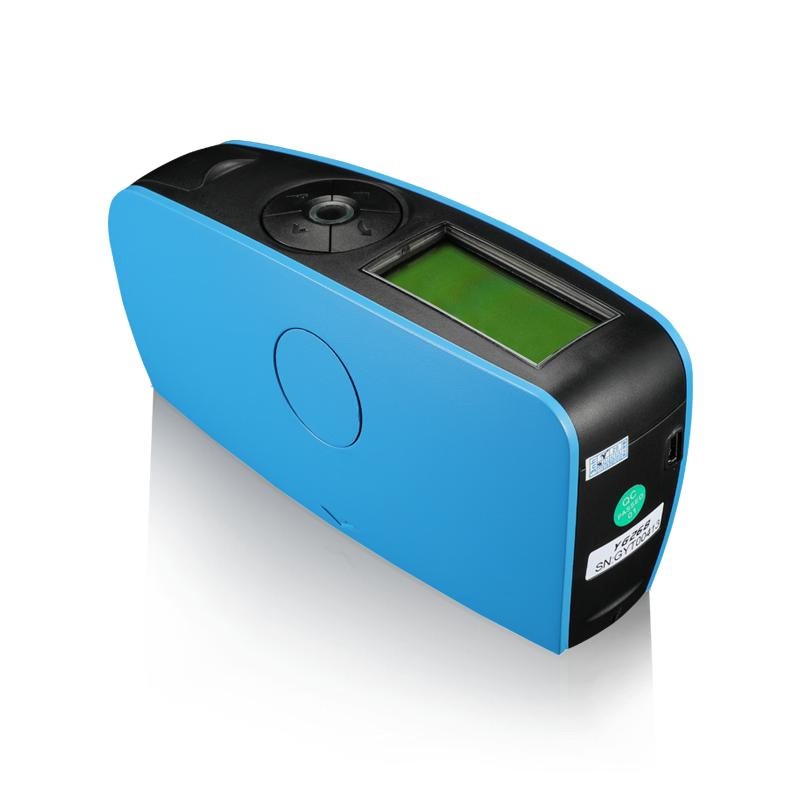

YG60 60°Digital Gloss Meter

Download Cataloge YG60 60.docx

Technical Data

Model YG60 60°Accurate Gloss Meter
Measuring Angle 60°
Measurement Range 60°: 0-1000GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate Conform with JJG696  requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode :

10000; QC mode: 10000)

Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use US

B Charge

Interface USB
PC Software GQC6 QC software can printing testing report and with

more extended functions

Operation Temperature Range 0-40ºC(32-104° F)
Storage Temperature Range -20-50ºC(-4-122° F)
Humidity Range < 85% RH, without condensation

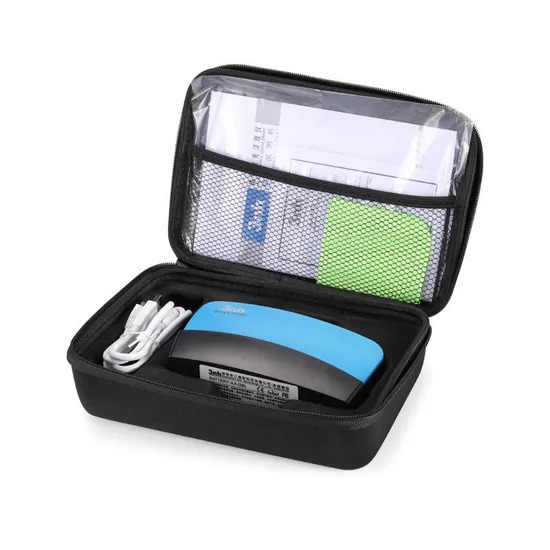

Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer, Bluetooth
Notification: the technical parameter is only for reference

Download Cataloge YG60 60.docx

YG60 60°Digital Gloss Meter
Product Features:

1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet  requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements
