Technocratics (Private) Limited

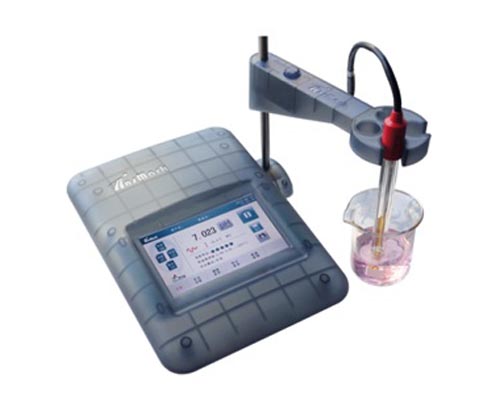

pH meter bench top

pH meter (different models) with/without printer/online printing/21 CFR compliance

pH meter insmark

pH meter with and without printer

Color touch screen

auto buffer recognition



pH meter (different models) with/without printer/online printing/21 CFR compliance

IS126 IS128 IS136 IS139 IS139FD
Measuring mode pH/mV pH/mV/ORP pH/mV/ORP pH/mV/ORP pH/mV/ORP
Range (pH) -2.00 to 18.00 -2.00 to 18.00 -2.00 to 20.00 -2.00 to 20.00 -2.00 to 20.00
Resolution (pH) 0.01/0.1 0.01/0.1 0.001 / 0.01 / 0.1 0.001 / 0.01 / 0.1 0.001 / 0.01 / 0.1
Relative accuracy ±0.01 pH ±0.01 pH ±0.002 pH ±0.002 pH ±0.002 pH
Range (mV) -2000.0 to 2000.0 -2000.0 to 2000.0 -2000.0 to 2000.0 -2000.0 to 2000.0 -2000.0 to 2000.0
Resolution (mV) 1 0.1/1 0.01 / 0.1 / 1 0.01 / 0.1 / 1 0.01 / 0.1 / 1
Relative accuracy ±1 mV ±0.4 mV ±0.1 mV ±0.1 mV ±0.1 mV
Temp range(℃) MTC: -5.0 to 105.0 ℃ MTC: -5.0 to 105.0 MTC: -30.0 to 130.0 ℃ MTC: -30.0 to 130.0 ℃ MTC: -30.0 to 130.0 ℃
ATC: -5.0 to 105.0 ℃ ATC: -5.0 to 105.0 ℃ ATC: -5.0 to 130.0 ℃ ATC: -5.0 to 130.0 ℃ ATC: -5.0 to 130.0 ℃
Temp accuracy(℃) ±0.2℃ ±0.1℃ ±0.1℃ ±0.1℃ ±0.1℃
Calibration 3 predefined pH buffer groups
Auto buffer recognition
User-definable buffer(1-5points)
5 predefined pH buffer groups auto buffer recognition, user-definable buffers(1-5 points) 9 predefined pH buffer groups Auto buffer recognition User-definable buffer(1-9points) 9 predefined pH buffer groups Auto buffer recognition User-definable buffer(1-9points) 9 predefined pH buffer groups Auto buffer recognition User-definable buffer(1-9points)
Database 1000 groups measuring data 2000 groups measuring data 2000 groups measuring data 2000 groups measuring data 21CFR electronic feature 1000 groups,
Output RS232,USB, printer(optional), RS232,USB, printer(optional),Is-Link RS232, USB, printer(Optional), 4G USB flash(barcode scanner is connectable for ID entry) RS232, USB, printer(Optional), 4G USB flash(barcode scanner is connectable for ID entry) Online printing option

Software for  PC

No.of user=10

Entry password

Data base printing

Display 5.0″ color, touch screen 5.0″ color, touch screen, Resolution800x480 5.0″ color, touch screen 5.0″ color, touch screen 5.0″ color, touch screen Resolution800x480
Others GLP function, continuous measurement mode, dynamic curve display (pH vs.t, mV vs. t) GLP function, continues measurement mode dynamic curve displaypH vs.t, mV vs. t GLP function, continuous measurement mode, dynamic curve display pH vs.t, mV vs. t GLP function, continuous measurement mode, dynamic curve display pH vs.t, mV vs. t
Configuration  IS126E pH meter, electrode holder, YE201 pH combination electrode Insmark), buffer solution 50ml*2(pH4.01/pH6.86protective cover IS128 pHmeter Electrode holder, YE203 3-in-1 pH combination electrode Insmark protective cover Specific power supply on request IS139E pH meter, Electrode holder, YE203 3-in-1 pH combination electrode Insmark buffer solution 50ml*3(pH4.01/pH6.86/pH9.01), cover IS139E pH meter, Electrode holder, YE203 3-in-1 pH combination electrode(Insmark), buffer solution 50ml*3(pH4.01/pH6.86?pH9.01), cover IS139FD, pH meter, insmark printer, electrode holder

YE203 3-in-1 pH combination electrode,

Protective cover, data transmission software

N.W./G.W. 1kg / 2.5kg 0.7kg / 2.2kg 1kg / 2.5kg 1kg / 2.5kg 4kg / 7kg
Dimension L*W*H 24cm*18cm*8cm 24cm*18cm*8cm 24cm*18cm*8cm 24cm*18cm*8cm 17cm*23cm*7cm

Make:  Insmark,   Germany
