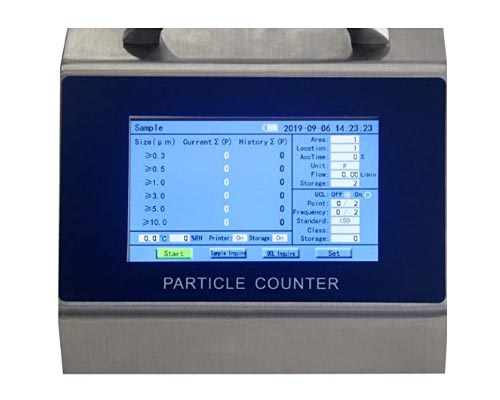

Portable Laser Particle Counter for sterile area/clean room & microbiology
Body stainless Steel
Model No. Y09-301
Airborne Particle Counter is used to detect the particles in the clean room. It can measure the class 100 to 300 k environment. The instrument uses the laser diode as the light source, LCD-panel displays, six different size ranges simultaneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer.The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
| Display | LCD |
| Weight | 4.5Kg |
| Max. Consumption | 10W |
| Power Source | AC 220 V ± 10%,50 Hz |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83 L/min (Imported Pump) |
| Sample Time | 1—10 min (Slectable) |
| Zero Count &le | 10 min |
| Location Labels | 0-999 |
| Printer | Built-in Thermal Printer |
| Alarm | 100, 1000, 10000 Class |
| Data Storage | 1000 Samples (With PC Software) |
| Light Source | Laser Diode (30, 000 hours Mean Time Between Failures) |
| Maximum Rated Particle Concentration | 35000 particles/L ( μm ) |
| Operating Time | 8 hours |
| Environmental Temperature | 10 degrees celsius-35 degrees celsius |
| Humidity | 20%-75%RH |
| Atmosphere Pressure | 86 Kpa-106 Kpa |
| Optional | PC Software |
| Make: Sujing ,China | |
