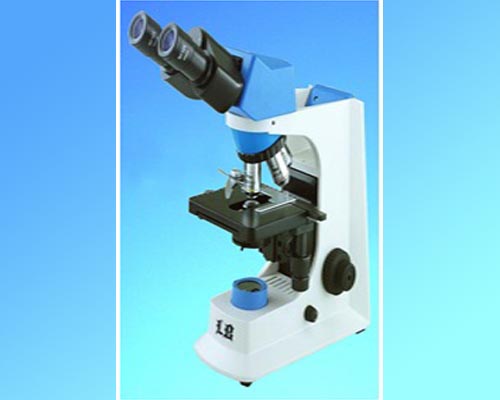

BINOCULAR MICROSCOPES
Model: LB-270
| Optic | Infinite optical system |
| Viewing Head | Side and top Binocular viewing head, inclined at 30 degree, 360 degree rotatable, Inter pupillary distance 50-75 mm. |
| Eyepiece | WF 10X/20 with dioptre adjustment WF 16X/13 (optional) |
| Objective | Infinity Plan Achromatic objectives 4X, 10X, 40X (S), 100X (Oil) (S) (Plan 20X & Plan 60X(S) are optional) |
| Nosepiece | Backward Quadruple Nose piece Backward Quintuple Nose piece (optional) |
| Focusing | Coaxial coarse and Fine focusing knobs, Travel range: 26mm, scale: 2um |
| Condenser | Abbe condenser NA 1.25 with Iris Diaphragm |
| Filter | Blue (Green and yellow filters are optional.) |
| Dimension | 42cm x 28cm x 45cm, 8Kg |
Make: Labomed, Inc. USA
