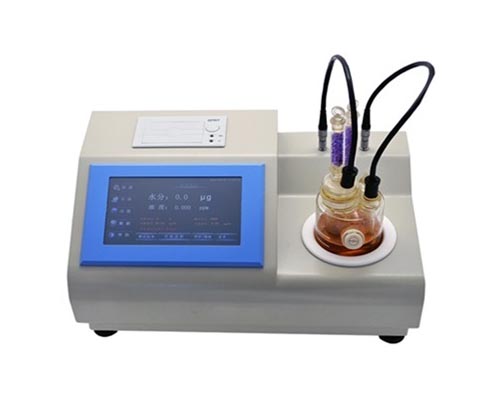

Karl Fischer Moisture Analyzer:

The host SOC adopts ARM9 chip frequency up to 400Mhz, running memory 128M, so that the instrument has more powerful computing power, and the task is easy to perform;

The integrated injection molding shell has smooth and beautiful lines, anti-corrosion coating on the surface, corrosion resistance, aging resistance, anti-static, and beautiful unlike the strength pie;

The built-in 10.1-inch large color touch screen has more display content, and the ergonomic hinge design can adjust the screen angle The operation of the instrument is not laborious;

Sample identification function, the instrument automatically starts electrolysis after the user does not need any operation;

The built-in automatic dosing, discharge, cleaning, oil discharge means, automatic level detection, automatic discharge start overrun, oil-water separation technology, non-stop oil discharge, the automatic cleaning cell;

Built-in electronic balance, automatically calculate the water content by automatically weighing the sample, without manual calculation;

PWM mode adjusts the stirring speed, directly input the number in the interface or click the button to adjust, which is more accurate and convenient than the potentiometer adjustment;

also shows the water content in the online measurement time, PPM, the percentage content of the electrolytic current, voltage, system time, the experiment problem can be found at a glance in time;

Built-in multiple experimental methods, different experimental parameters can be designed according to different samples;

The measurement results are automatically calculated, including percentage, ppm, mg, etc.;

Comply with GLP’s experimental records, including measurement time, water content, percentage, system time, operator,

Expand the storage space, can save more than 100,000 experimental records, can be connected to the U disk, the measurement results are directly stored in the U disk and into the computer for browsing, printing and other operations;

Built-in thermal printer, the experimental record can be printed at any

Technical Parameters

Name                                      :Technical Parameters

Model                                      :LO-MT-V320

Measuring range                     :0—300mg water

Measurement speed               :2.24mg H2O/min (maximum)

Measurement accuracy           : 3ug (10ug–100ug H2O) ≤0.3% (water content >100ug H2O)

Resolution                               : 0.01ug H2O

Electrolysis current                  :400mA

Electrolytic electrode              :Platinum with diaphragm

Storage Expands as needed to save over 100,000 records

Special features :Users automatically start measurement after injection, display data in

the measurement process in real time,

automatically detect liquid level over-limit automatic start draining, oilwater

separation technology to achieve non-stop oil drain,

automatic cleaning of electrolytic cell function, automatic liquid addition.

RS232                                         :interface 2

USB                                             :interface 1

Electronic balance                      :Measure 0-100g resolution 0.001g

Automatic weighing of sample weight. Automatic calculation of water content

Ambient temperature                 :+5 ~ +40 °C; humidity <80%

Power supply                             :110-250V 50Hz

Instrument size                           :495x330x325mm

Instrument weight                       :4kg

Make                                                     : Japan
