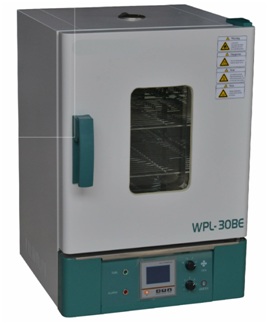

Constant-temperature Incubator
Model : W65-B
This equipment applies to industrial enterprises, food processing, agriculture, biochemistry, biology, and medicine industry for bacterium and microorganism culturing experiment etc.
1. Unique vertical double duct supply horizontal air circularly.
2. 4 grades 3 speed adjustable speed fan, LED running indicator light.
3. Over-temperature protection system: LED red light on meanwhile cut off heating circuit to improve product safety when workroom temperature exceed the alarm value.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
Technical Specification
| Model |
WPL-65BE |
| Cycle Mode |
Forced convection |
| Function |
Temp. range |
RT+5-120ºC |
| Temp. Resolution Ratio |
0.1ºC |
| Temp. Motion |
±1ºC |
| Temp. Uniformity |
±1.0ºC |
| Structure |
Inner Chamber |
Mirror Stainless Steel |
| Outer Shell |
Cold rolling steel electrostatic spraying exterior |
| Insulation layer |
High quaility foam board |
| Heater |
Stainless steel heater |
| Power rating |
0.7kW |
| Exhaust hole |
φ28mmtop( with function of test hole) |
| Controller |
Temp control mode |
Two temperature section intelligent PID |
| Temp. setting mode |
Touch button setting |
| Temp. display mode |
Measuring temperature: LCD upper screen; setting temperature: the lower row |
| Timer |
0-9999min(with timing wait function) |
| Operation function |
Fixed temperature operation, timing function, auto stop. |
| Additional function |
Digital Independent temperature limiter,4 grades 3 speed adjustable speed fan(230 without fan speed adjuor),Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| Sensor |
pt100 |
| Specification |
Inner Chamber size(W*L*H)(mm) |
400*360
*450 |
| Exterior size (W*L*H)(mm) |
550*550
*840 |
| Packing size (W*L*H)(mm) |
640*635
*985 |
| Volume |
65L |
| Shelf number |
9 |
| Load per rack |
15kg |
| Shelf space |
35mm |
| Current rating |
220V/
3.2A |
| NW/GW (kg) |
44/49 |
| Accessory |
Shelf |
2 |
| Shelf Fame |
4 |
| optional accessories |
Shelf,RS485 interface,printer,program controller, remote control, USB data storage |
Make : A&E lab UK Co., Ltd |
|
