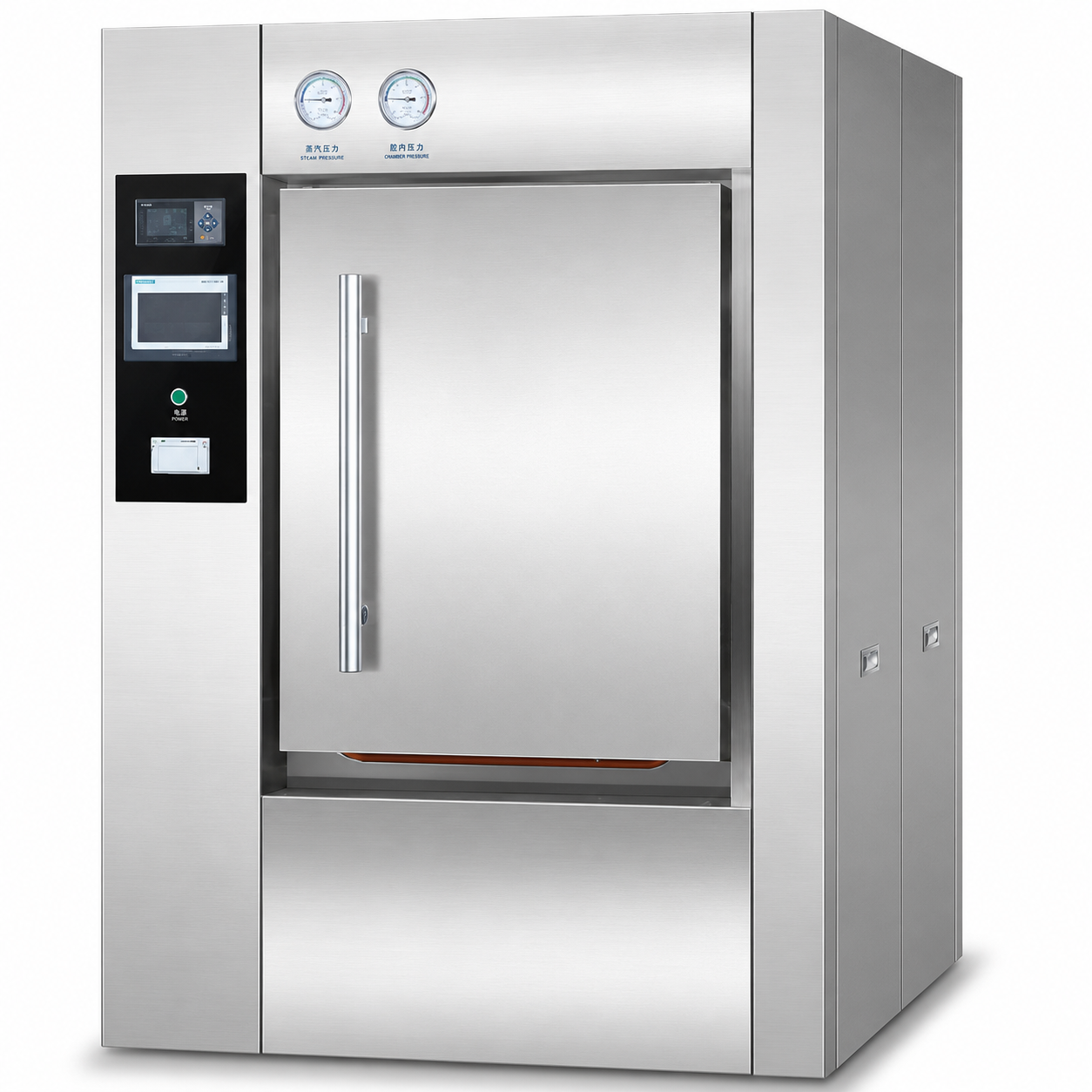

High Pressure Steam Sterilizer (Autoclave)





Model LS-35HD LS-50HD LS-100HD
Technical parameter
Effective volume of sterilization chamber 35L

φ318×450mm

50L

φ340×550mm

100L

φ440×650mm

Fixed work stress 0.22Mpa
Rated operating temperature 134℃
Maximum working pressure 0.23Mpa
Thermal uniformity ≤±1℃
Timing selection range 0- 99 min or 0-99 hour 59min
Temperature selection range 105-134
Power/Supply Voltage 1 X 2.5KW/AC220V 50HZ 2 X 1.5KW/AC220V 50HZ 3 X 1.5KW/AC220V 50HZ
Dimensions (mm) 470×450×1020 520×490×1150 580×560×1290
Shipping volume (mm) 540×540×1140 580×580×1250 640×640×1360
Gross/Net 81Kg/63Kg 94Kg/74Kg 125Kg/105Kg



Download Cataloge Of Autoclaves 50L , 100 L,35L

Category:

Instrument Introduction

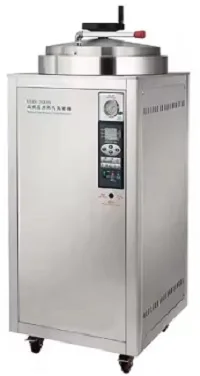

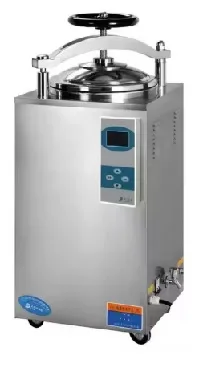

This vertical sterilizer is a safe, reliable and automatically controlled sterilization equipment, consisting of a heating system, a microcomputer control system and an overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving and durability, and low cost.



Performance and Features:

  • High quality all stainless steel material
  • Handwheel translation type quick opening structure
  • Safety interlocks
  • LCD display working status, touch key
  • Water cut protection control
  • Self-expanding seal
  • Automatically discharge cold air, automatically discharge steam after sterilization
  • Over-temperature, over-pressure automatic protection function
  • End of sterilization buzzer to remind automatic shutdown
  • Simple operation, safe and reliable
  • Comes with stainless steel inner tub or double-layer mesh basket
  • Optional drying system
