Gel Sealing HEPA Filter

GEL SEALING HEPA FILTER

1. Product Type

  • Type: Gel Sealing HEPA Filter

  • Mounting: Top Gel Seiling / Side GL Sealing

  • Application: Cleanroom, Pharmaceutical, Biotechnology, Hospital, Laboratory, HVAC Terminal units

2. Filtration Performance

  • Filter Class:
    H14 – 99.995% efficiency @ 0.3 µm
    U15 – 99.9995% efficiency @ 0.12 µm

  • Test Standard: EN 1822

  • Particle Size: ≤ 0.3 micron

3. Construction & Materials

  • Outer Frame: Aluminum Alloy

  • Filter Media: High-quality Glass Fiber

  • Separator: Environmentally friendly hot-melt adhesive

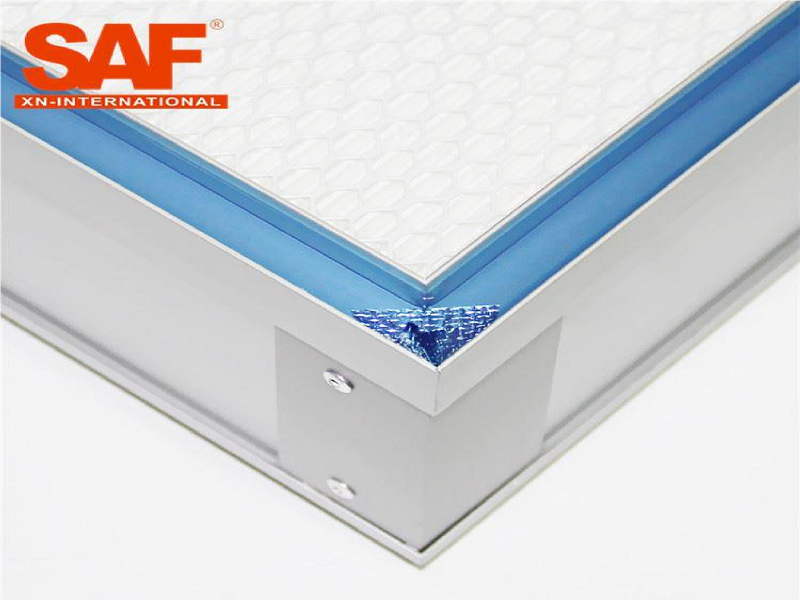

  • Sealant: Polyurethane AB Glue (Blue Jelly / Gel Seal)

  • Protection Net: Double-sided painted protection mesh

4. Thickness Options

  • Top Gel Sealing HEPA: 95 mm / 104 mm

  • Side Gel Sealing HEPA: 93 mm / 117 mm

5. Size Range (Standard)

  • Available depths: 69, 80, 90, 93, 95, 96, 104, 117, 130, 150 mm

  • Custom sizes available on request

6. Operating Conditions

  • Maximum Temperature: 80°C

  • Maximum Relative Humidity: 80% RH

  • Airflow: Uniform airflow distribution, low resistance

7. Features

  • Ultra-thin and lightweight design

  • High dust holding capacity

  • Low pressure drop

  • Excellent sealing performance (leak-free installation)

  • Easy storage, transport & installation

  • Long service life

9. Typical Applications

  • Cleanrooms (ISO Class)

  • Pharmaceutical production areas

  • Filling & sterile zones

  • Hospitals & OT rooms

  • Laboratories & biotech facilities

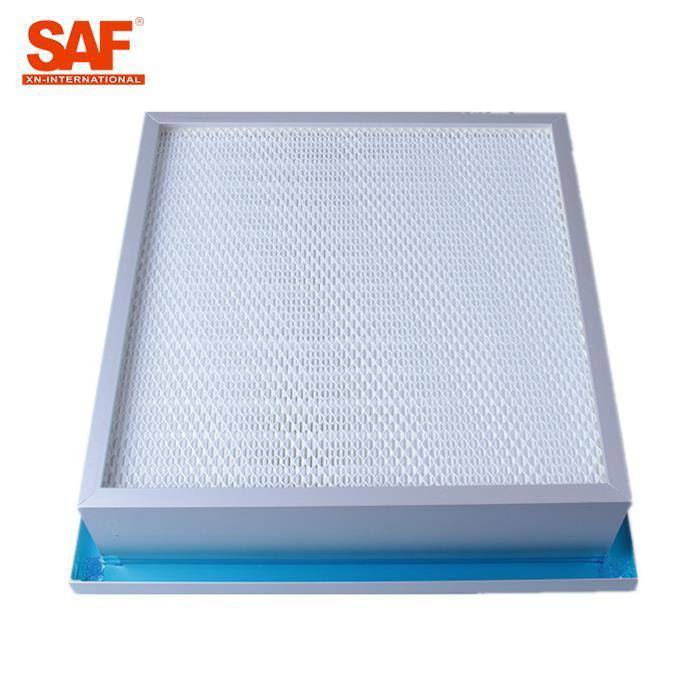

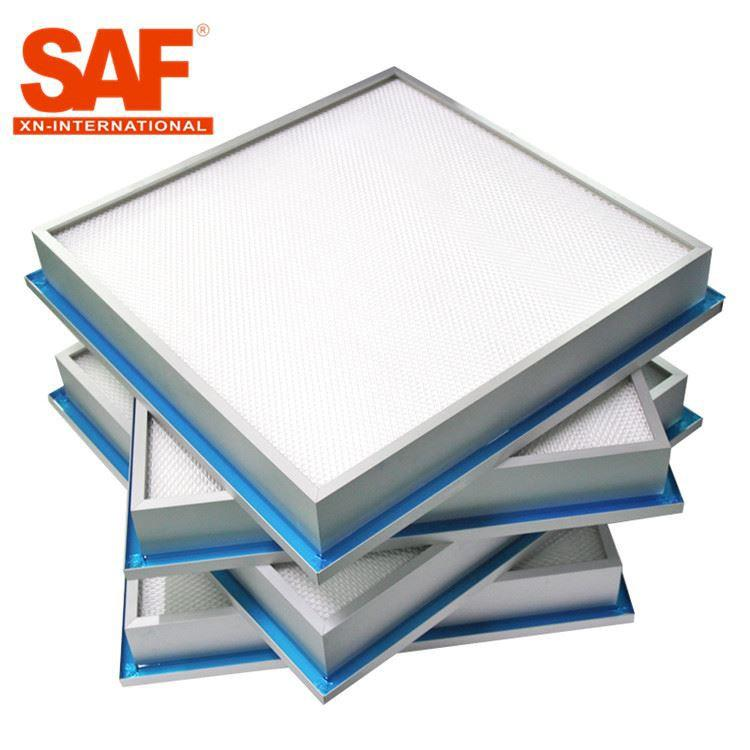

Product Variants Shown

  • 95mm Top Gel Sealing HEPA

  • 117mm Side Gel Sealing HEPA

Download catalog of Gel selling HEPA Filter

Categories: ,

The Gel Sealing HEPA Filter is a high-efficiency air filtration solution designed for critical clean environments where contamination control and leak-free sealing are essential. Engineered with a gel seal system, it ensures airtight installation and superior filtration performance compared to conventional gasket filters.

Manufactured using a durable aluminum frame and high-quality glass fiber media, the filter delivers H14 (99.995%) to U15 (99.9995%) efficiency, effectively capturing microscopic particles as small as 0.3 microns. The polyurethane gel seal provides a reliable, leak-free fit within terminal housings and cleanroom ceiling systems.

Its lightweight construction, low pressure drop, and high dust-holding capacity ensure energy efficiency and extended service life. Designed to operate in demanding environments, the filter maintains consistent airflow and performance under high humidity and temperature conditions.

Ideal for use in:

  • Cleanrooms (ISO classified areas)

  • Pharmaceutical & biotechnology facilities

  • Hospitals & operating theatres

  • Laboratories & sterile processing areas

  • HVAC terminal filtration systems
