Technocratics (Private) Limited

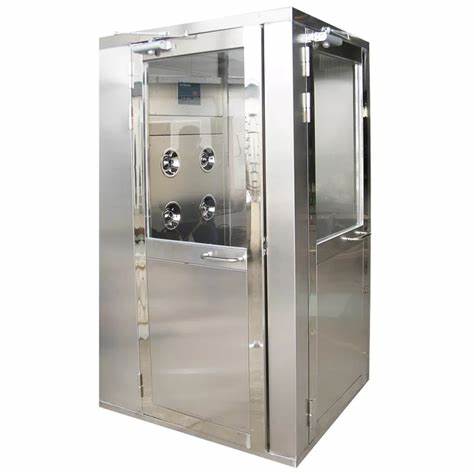

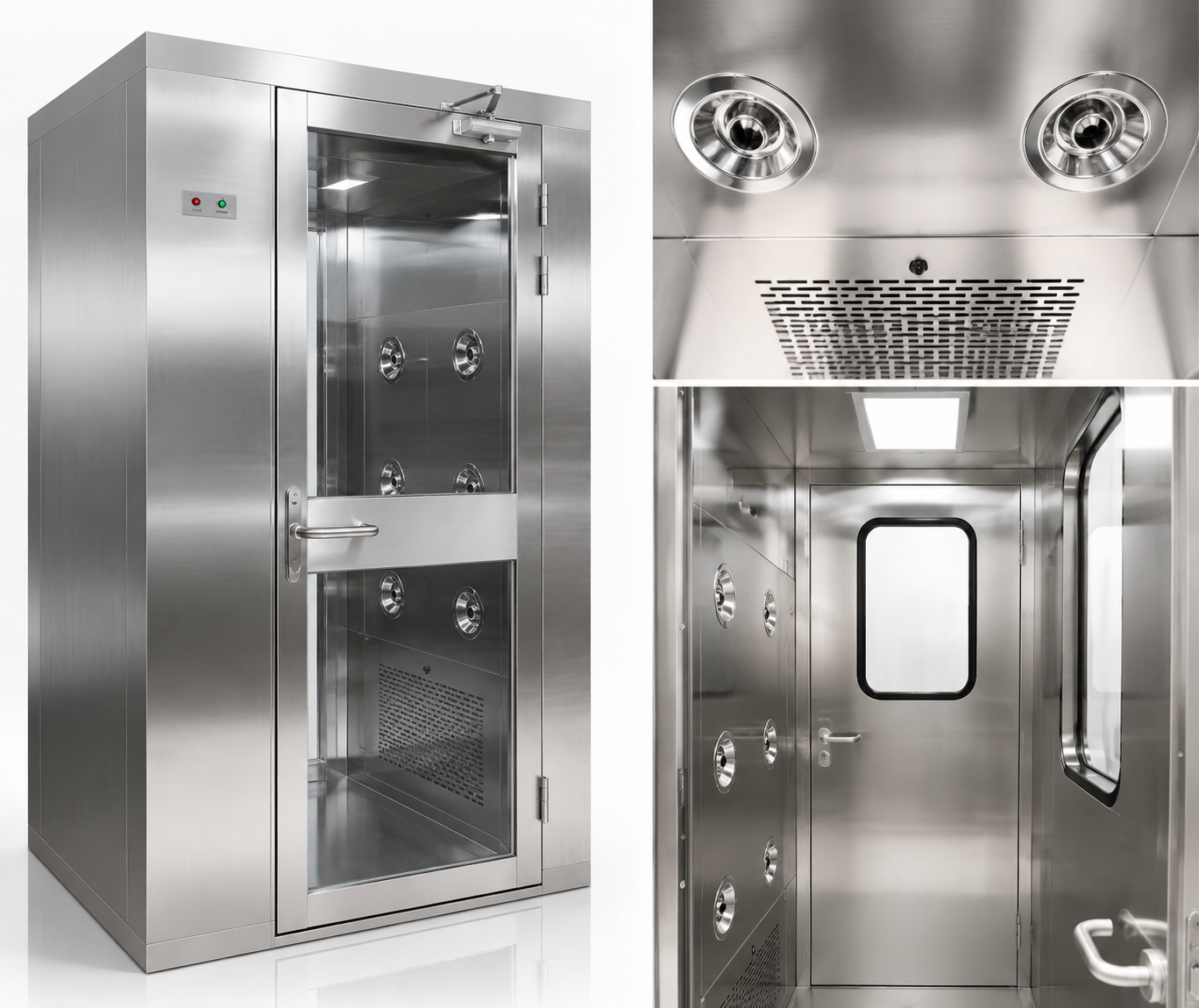

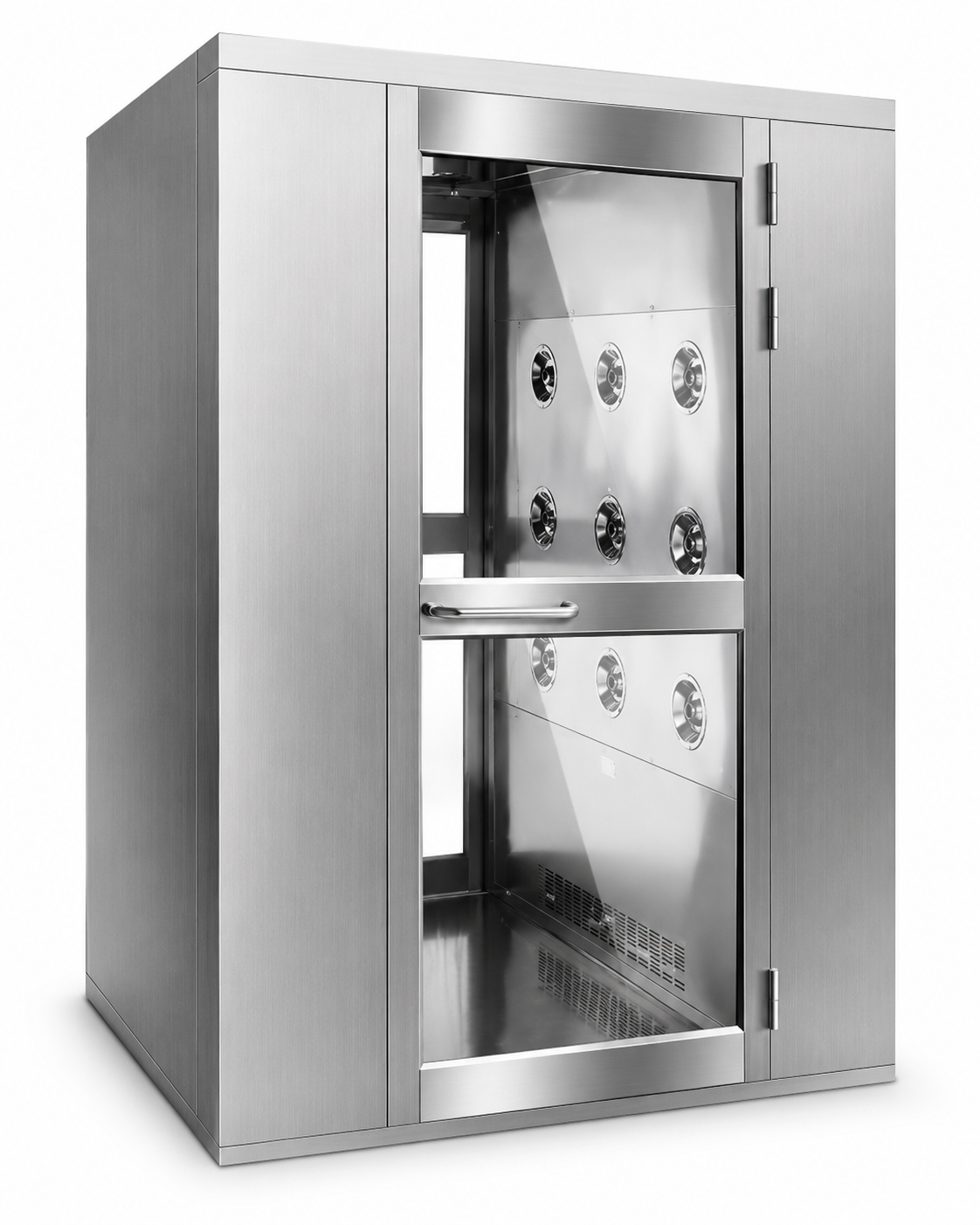

Air Shower For Sterile Dedicated Area.

Download Cataloge Air Shower

AIR SHOWER (Imported)

Model: TS-05

(Complete Stainless Steel)

Make: Technocratics, Karachi

Out dimension WxDxH (Inches) 60″ x 36″ x 90″
Inside dimension WxDxH (Inches)

Stainless steel 304

28″ x 31″ x 84″
Material SS 304 thickness 1 mm/PU filled double door
Display Imported panel & imported interlocking to control doors
Motor fans 2 Nos, 2800rpm
HEPA filter H 14   V Bank, 592x287x292 x2

90.99@0.5um

Pre filter 2, G4
Air velocity (m/s) 18-22

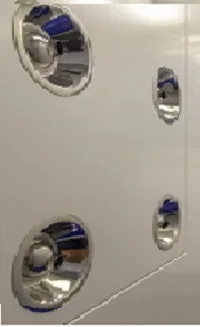

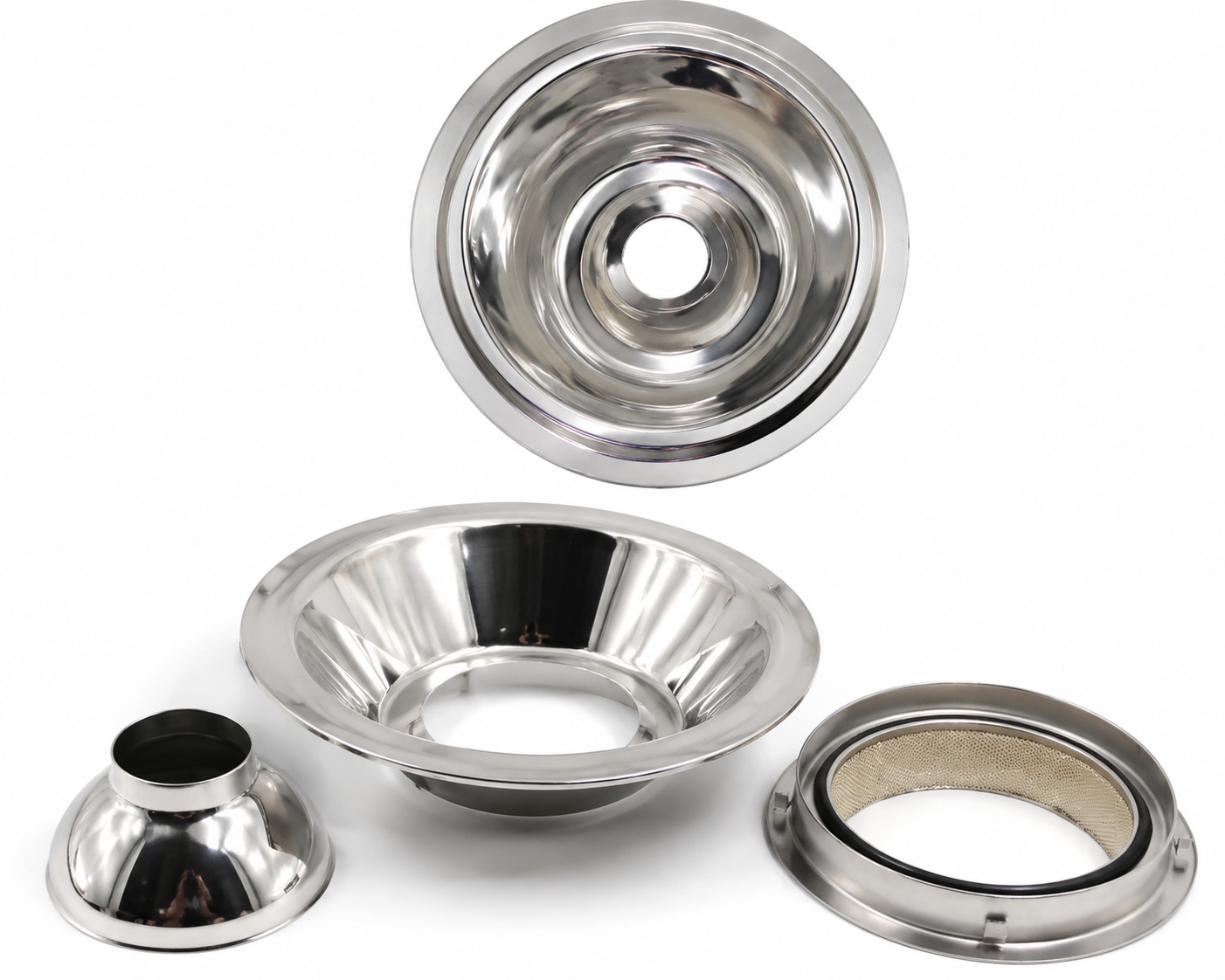

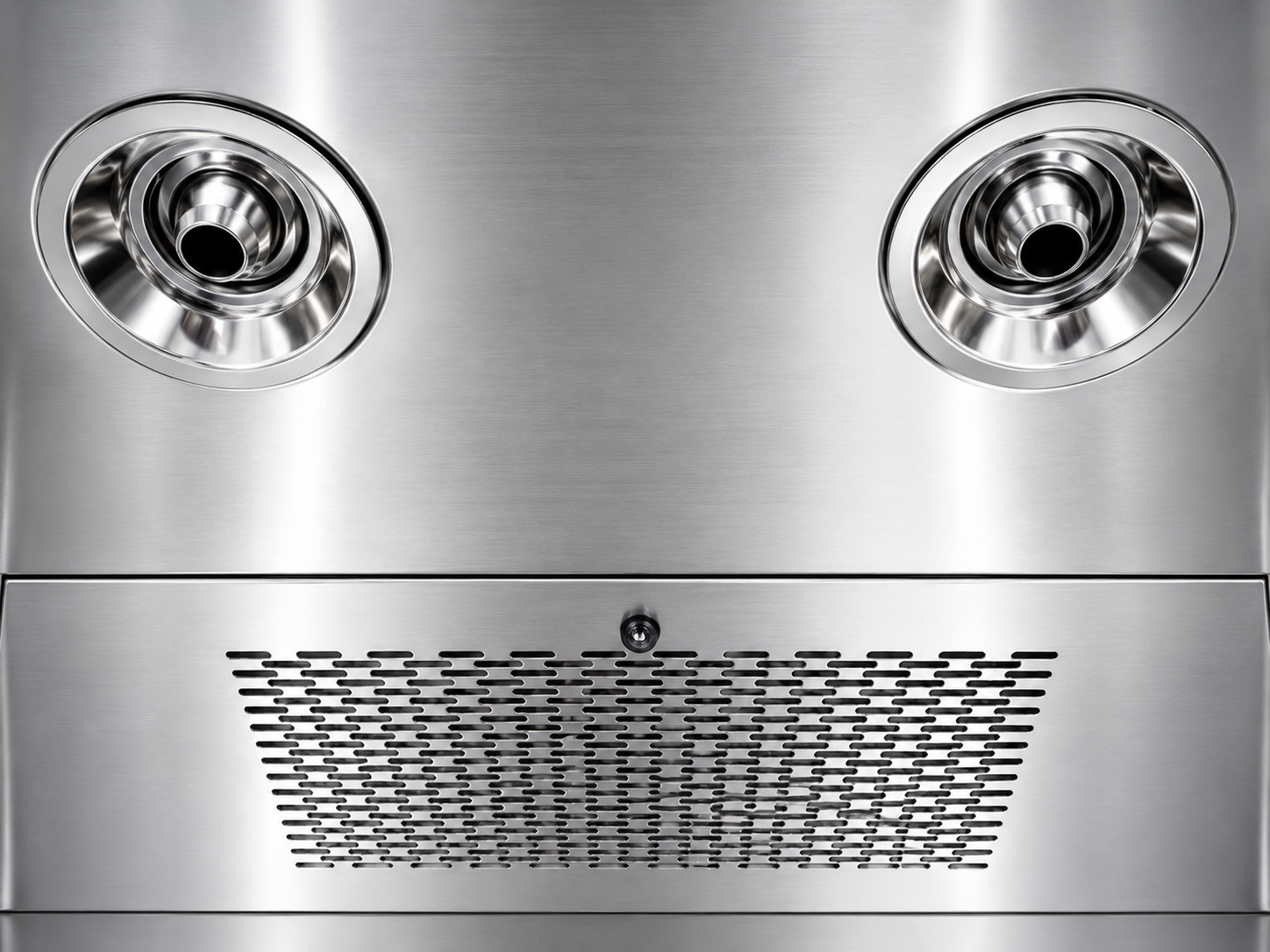

Nozzle quantity (piece) 16
Air show time (second) 10s (10-99 adjustable )
Frame material 1.0mm thickness Stainless Steel
Door material SS 304 thickness 1 mm/PU filled double door
Baseboard Stainless Steel
Fan power (W) 1100 x1
LED power(W) 18×2
Power 380V50Hz
Staff 1-2

Description for product

(Complete Stainless Steel)

Air Showers are self-contained chambers installed at entrances to cleanrooms or injectable area and other controlled environments. It is minimizing particulate matter entering or exiting the clean space or injectable area. Personnel and materials entering or exiting the controlled environment are “scrubbed” by high velocity HEPA-filtered air jets with velocities of 20-22m/s (4000-4300fpm). Contaminated air is then drawn through the base within the unit, filtered and re-circulated.
