Digital Tensile Testing Machine

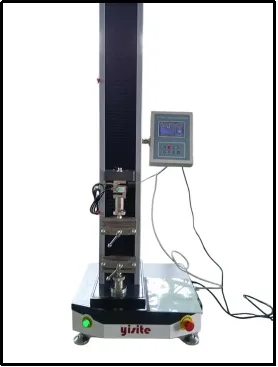

This digital testing machine adopts single column structure, it’s easy to moveandclean.

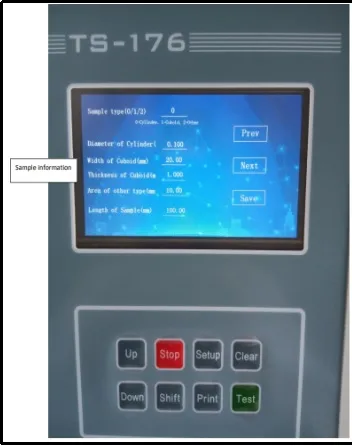

It is electronic power loaded, during the testing process, the LCDscreencandisplay the test force, force peak, displacement, deformation, test speed, runningstatus etc.
When the specimen is broken, the machine can automatically stop or youcanchoose to stop the test any time.
After specimen is broken, it can automatically calculate max. breakingforce(N),tensile strength(Mpa), deformation(mm).

Sr. #	Technical Parameter:
	Parameters	Range
1	Load cell max. Capacity	100N
2	Effective force measuring range	2%-100%F.S( 2 – 100N)
3	Display way	Digital touch screen
4	Accuracy	±1%
5	Test force resolution	0.1N
6	Displacement resolution	0.01mm
7	Test stroke	600mm
8	Test speed range	0.05-500mm/min(adjustable)
9	Packing size	5204901400mm
10	Gross weight	About 100kg
11	Voltage	1- phase, AC 220V±10%, 50Hz/60Hz
